GV3000/SE 230 VAC Drive, Software Reference Version 6.04
Step 11. Run the Drive
This step describes how to increase the speed reference across the speed range
and check for proper motor operation. This step assumes that P.000 is set to LOCL
(control is local) and the motor is connected to the load.

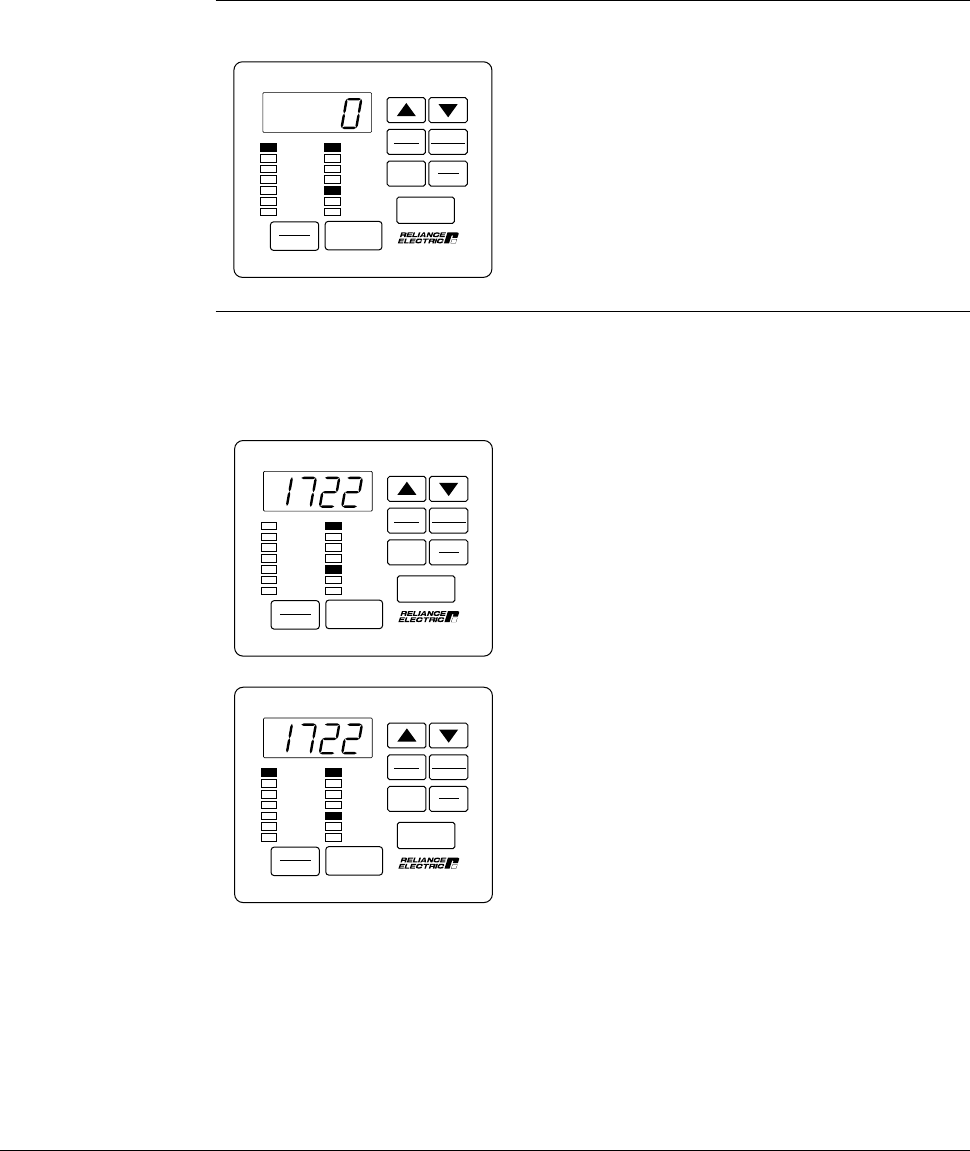

Step 11.1 Press the START key.
The drive is now running and the
keypad/display is in monitor mode.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 11.2 Press the £ or ¥ key once. All monitor mode LEDs will turn off.
Increase the speed reference to the maximum value by using the £ key.
Wait five seconds or press the ENTER key to return to monitor mode.
This increases the drive speed reference
and the motor will rotate up to maximum
speed.
The monitor mode LEDs turn off when the
reference is changed.
The display now shows the actual drive
speed. Your speed display may be different.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
