Software Start-Up and Ref. Owner manual

2-32
GV3000/SE 230 VAC Drive, Software Reference Version 6.04
Step 10.2 Verify that the AUTO LED is off (press the AUTO/MAN key until the
AUTO LED turns off).
This selects the local keypad as the speed
reference source.

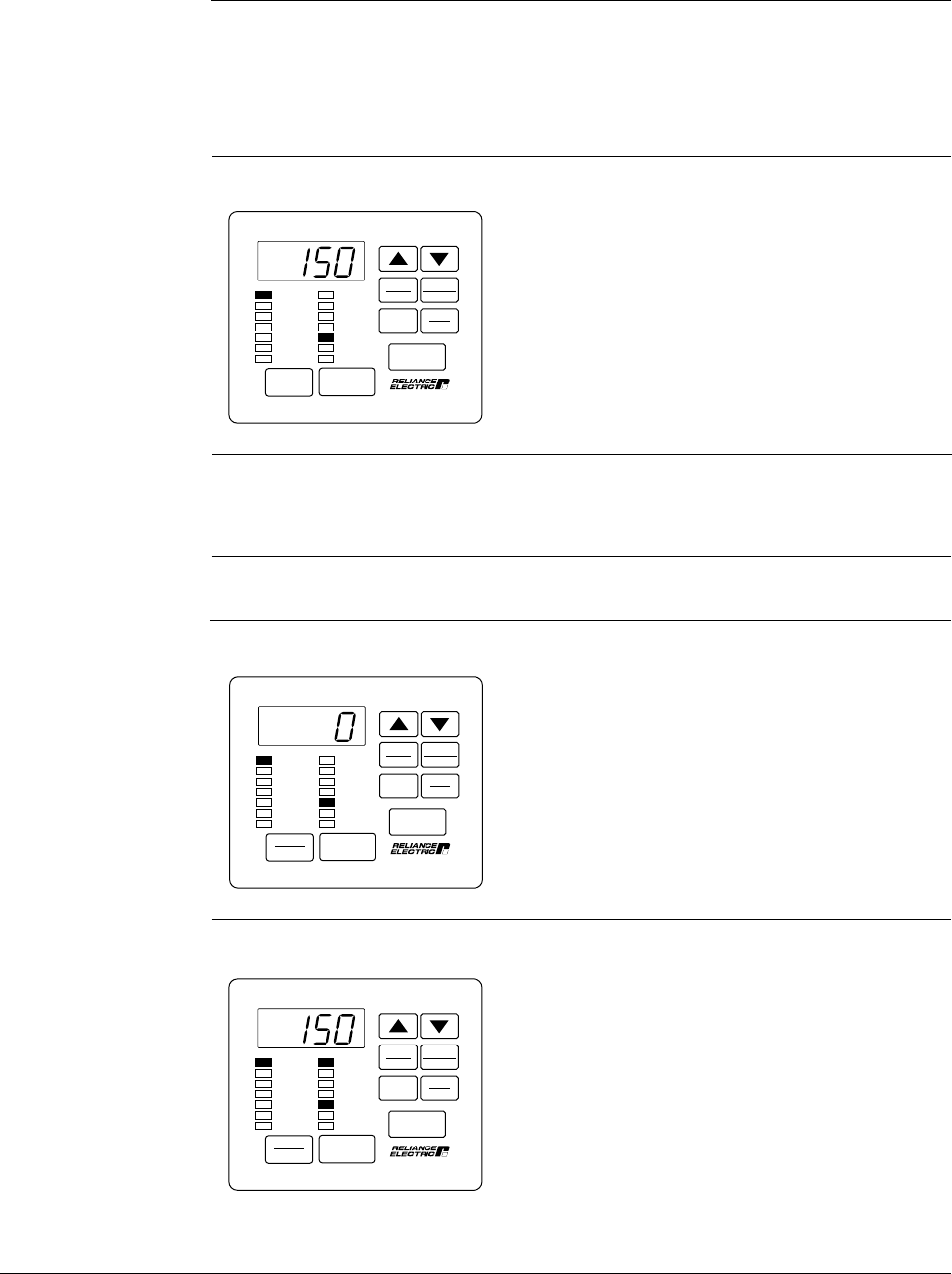

Step 10.3 Press the £ key or the ¥ key once.
The monitor mode LEDs will all turn off and
the manual speed reference value will be
displayed. The speed reference value is in
the units defined in P.028. The display
shown here is only an example.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 10.4 If the speed reference is at minimum speed, then proceed to Step 10.6.
If the speed reference is not at minimum speed, proceed to Step 10.5.
Step 10.5 Press the ¥ key to decrease the speed reference value.
Step 10.6 Press the ENTER key to return to monitor mode.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 10.7 Verify you have selected RUN and FORWARD. Press the START key.
The drive is now running. The
keypad/display is in monitor mode, and the
SPEED, RUNNING, and FORWARD LEDs
are on.
The drive should be running at minimum
speed. The sample display shows
150 RPM.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
