2-28
GV3000/SE 230 VAC Drive, Software Reference Version 6.04
What Happens if a Fault Occurs During Self-Tuning?
1. If the drive stops due to a fault, the motor will coast to stop. A self-tuning fault
code (SF) will be displayed and must be cleared. Refer to chapter 5 for more
information.
2. Once the drive is stopped, parameter U.008 will be reset to OFF and the
self-tuning procedure will be completed. The results are stored in U.009,
Torque Self-Tune Result.

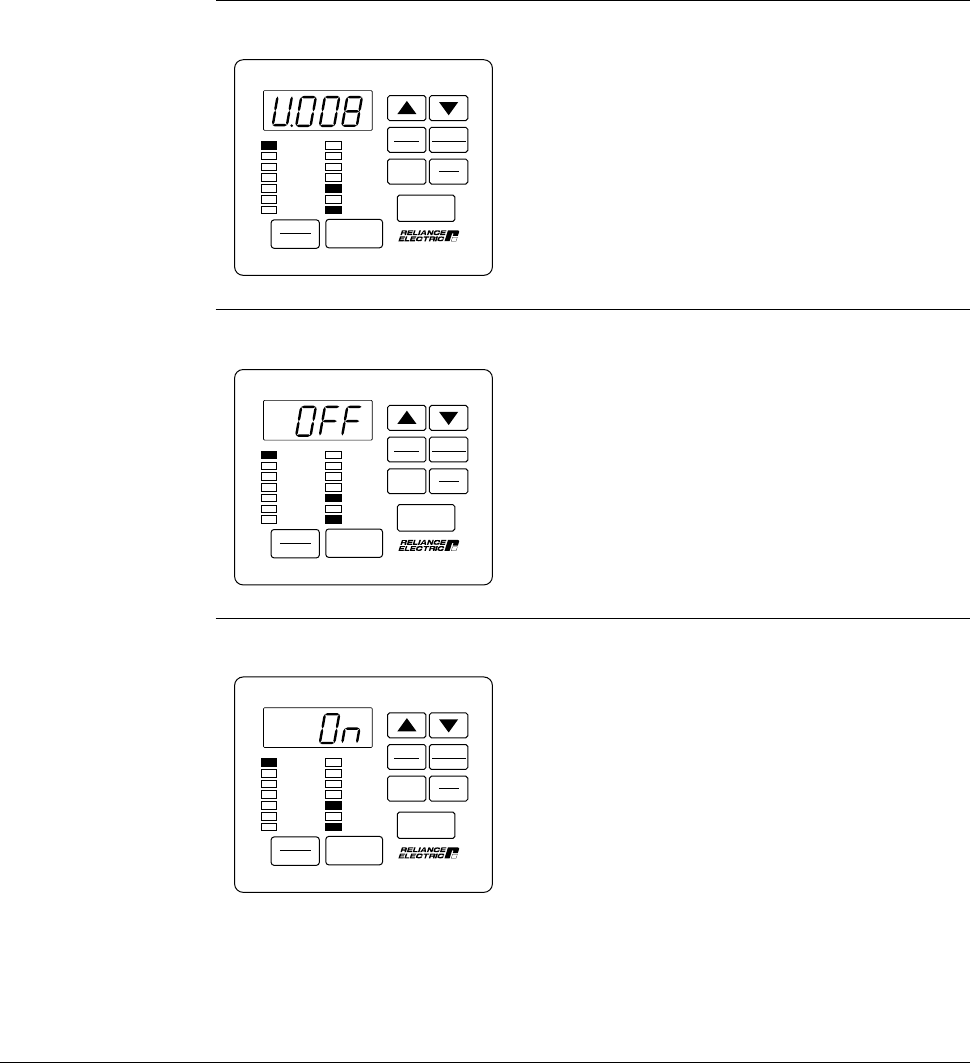

Step 8.1 Press the ¥ key to display U.008, Torque Self-Tune Enable.
Parameter U.008 is displayed.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 8.2 Press the ENTER key.
The default setting of OFF is displayed.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 8.3 Press the £ key to enable the self-tuning procedure.
On is displayed.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
