2-25
Starting Up the Drive for Vector Regulation

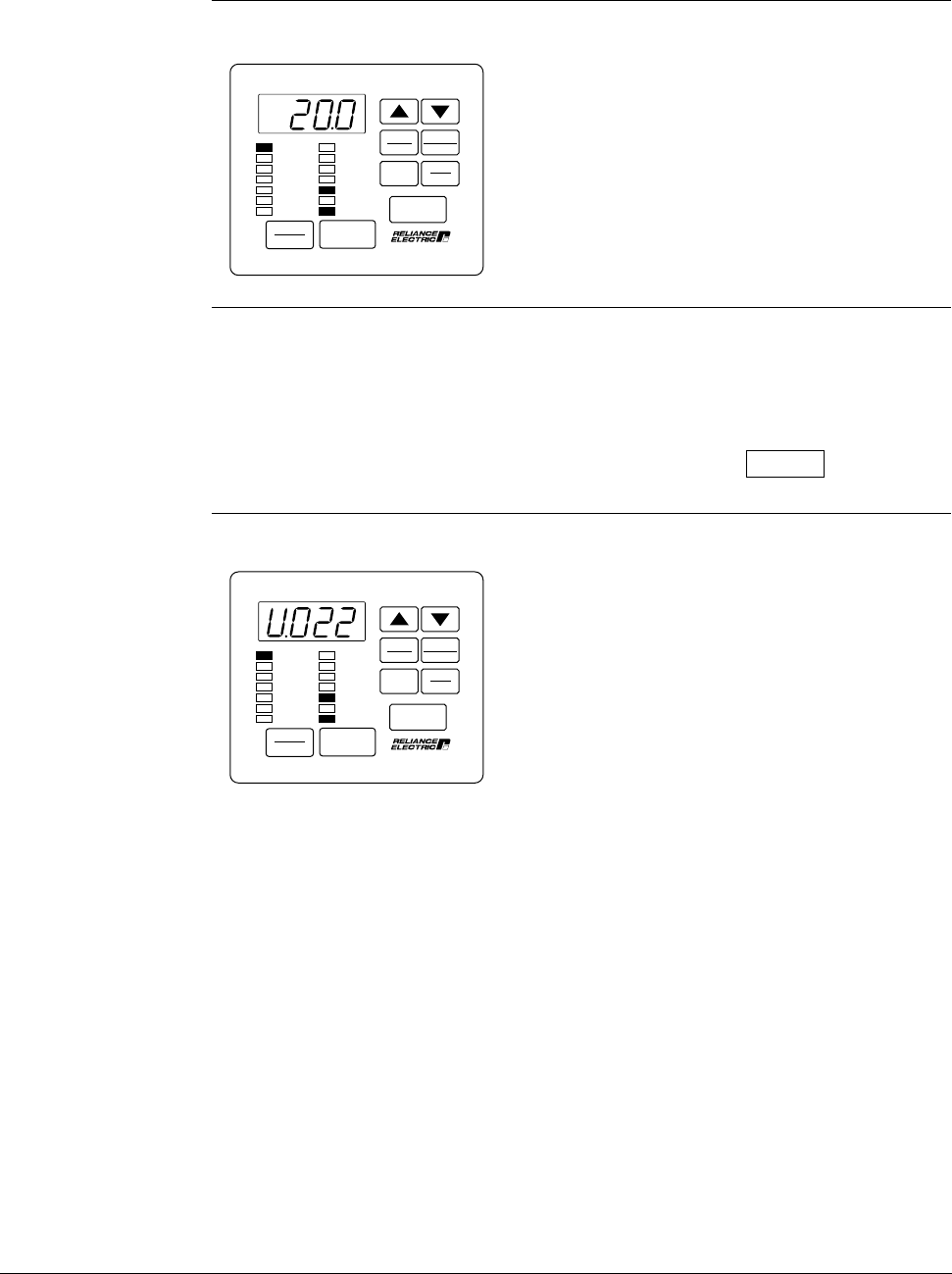

Step 6.33 Press the ENTER key to display the default setting of U.022.
This display the default setting for Motor
Nameplate Horsepower. The default setting
depends on the Power Module rating and is
factory-set. This display here is only an
example.
Step 6.34 Press the £ key or the ¥ key to increase or decrease the value if it is
different from the motor nameplate.
The adjustment range is 0.3 to 600.0 HP.
VALUE ENTERED:
Step 6.35 Press the ENTER key to save the displayed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
