GV3000/SE 230 VAC Drive, Software Reference Version 6.04

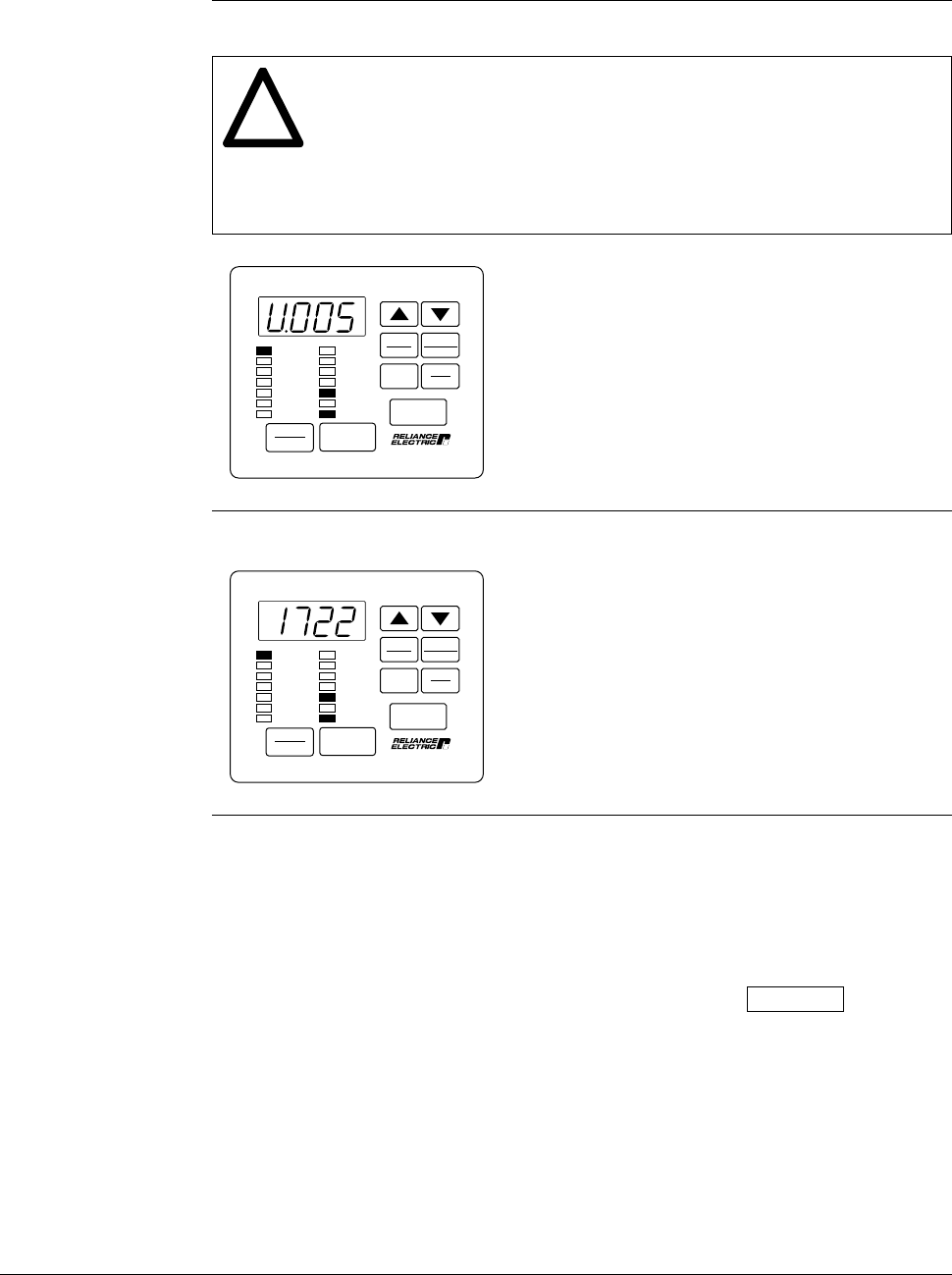

Step 6.23 Press the £ key to display U.005, Motor Nameplate RPM.
ATTENTION: The setting of parameters U.001 (Encoder PPR), U.002
(Motor Poles), U.003 (Motor Nameplate Base Frequency), U.005
(Motor Nameplate RPM), and U.017 (Motor Top Speed) determines
the motor maximum speed. These parameters must be set by a
qualified person who understands the significance of setting them
accurately. Failure to observe this precaution could result in bodily
injury.
This parameter is the Motor Nameplate RPM
and is taken from the motor nameplate.
!
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6.24 Press the ENTER key to display the default setting of U.005.
This displays the Motor Nameplate RPM
setting. The default depends on the HP
rating of the Power Module. The display
shown here is only an example.
Step 6.25 Press the £ key to increase the motor nameplate RPM or the ¥ key to
decrease the motor nameplate RPM.
The adjustment range for this value depends
on the settings of U.002 (Motor Poles) and
U.003 (Motor Nameplate Base Frequency).
VALUE ENTERED:
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
