2-18
GV3000/SE 230 VAC Drive, Software Reference Version 6.04

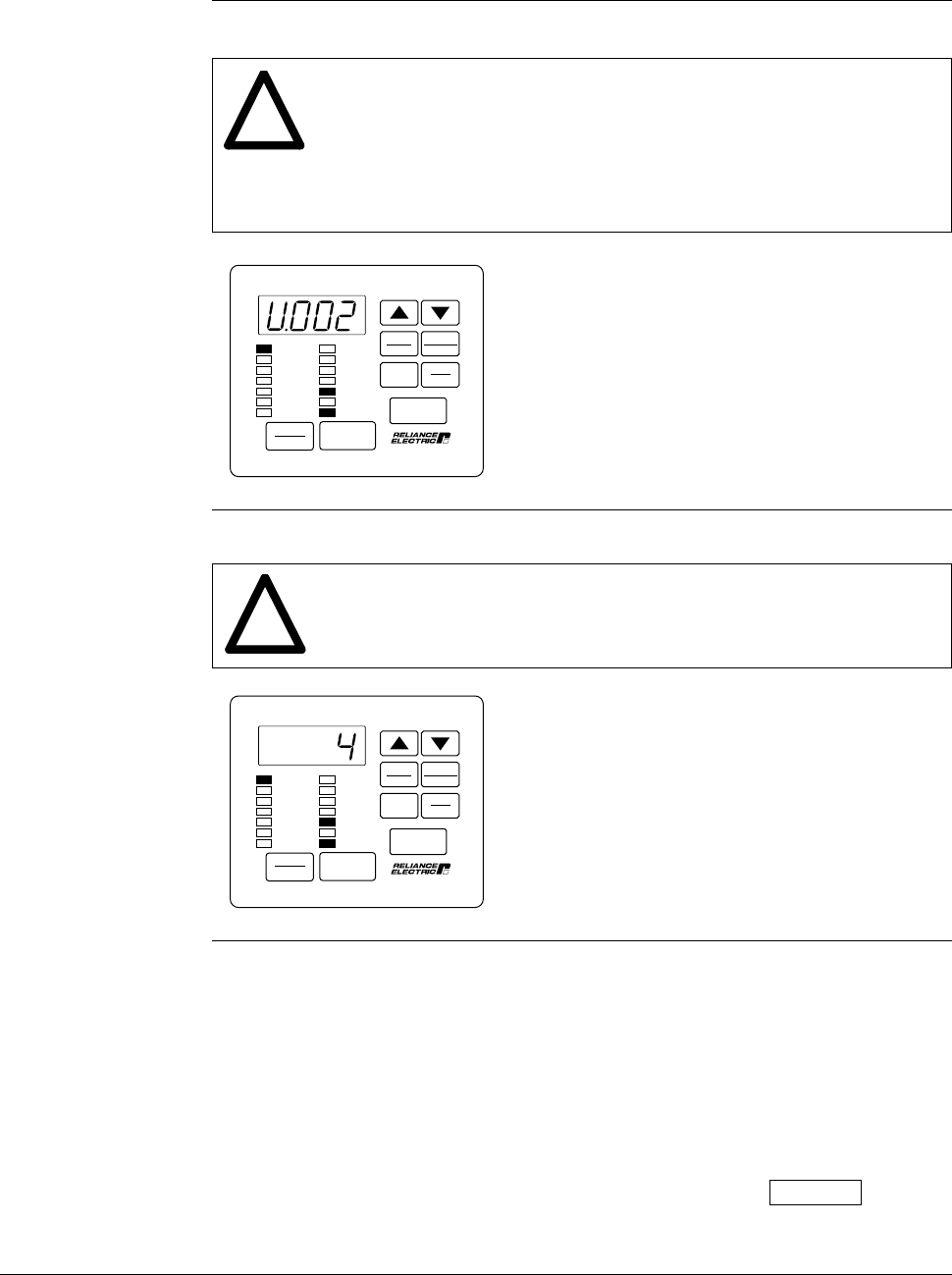

Step 6.11 Press the £ key to display U.002, Motor Poles.
ATTENTION: The setting of parameters U.001 (Encoder PPR), U.002
(Motor Poles), U.003 (Motor Nameplate Base Frequency), U.005
(Motor Nameplate RPM), and U.017 (Motor Top Speed) determines
the motor maximum speed. These parameters must be set by a
qualified person who understands the significance of setting them
accurately. Failure to observe this precaution could result in bodily
injury.
This parameter selects the number of poles
in the motor. If the number of motor poles is
not known, refer to chapter 4.
!
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6.12 Press the ENTER key to display the default setting of U.002.
ATTENTION: Do not use a 4096 PPR encoder with 2-pole motor.
Overspeed and motor damage can result. Failure to observe this
precaution could result in bodily injury.
This shows that the default setting for Motor
Poles is 4 (4 poles).
!
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6.13 Press the £ key to increase the selection, or the ¥ key to decrease
the selection.
The adjustment options are:
2 = 2 poles
4 = 4 poles (default)
6 = 6 poles
8 = 8 poles
VALUE ENTERED:
