2-17
Starting Up the Drive for Vector Regulation

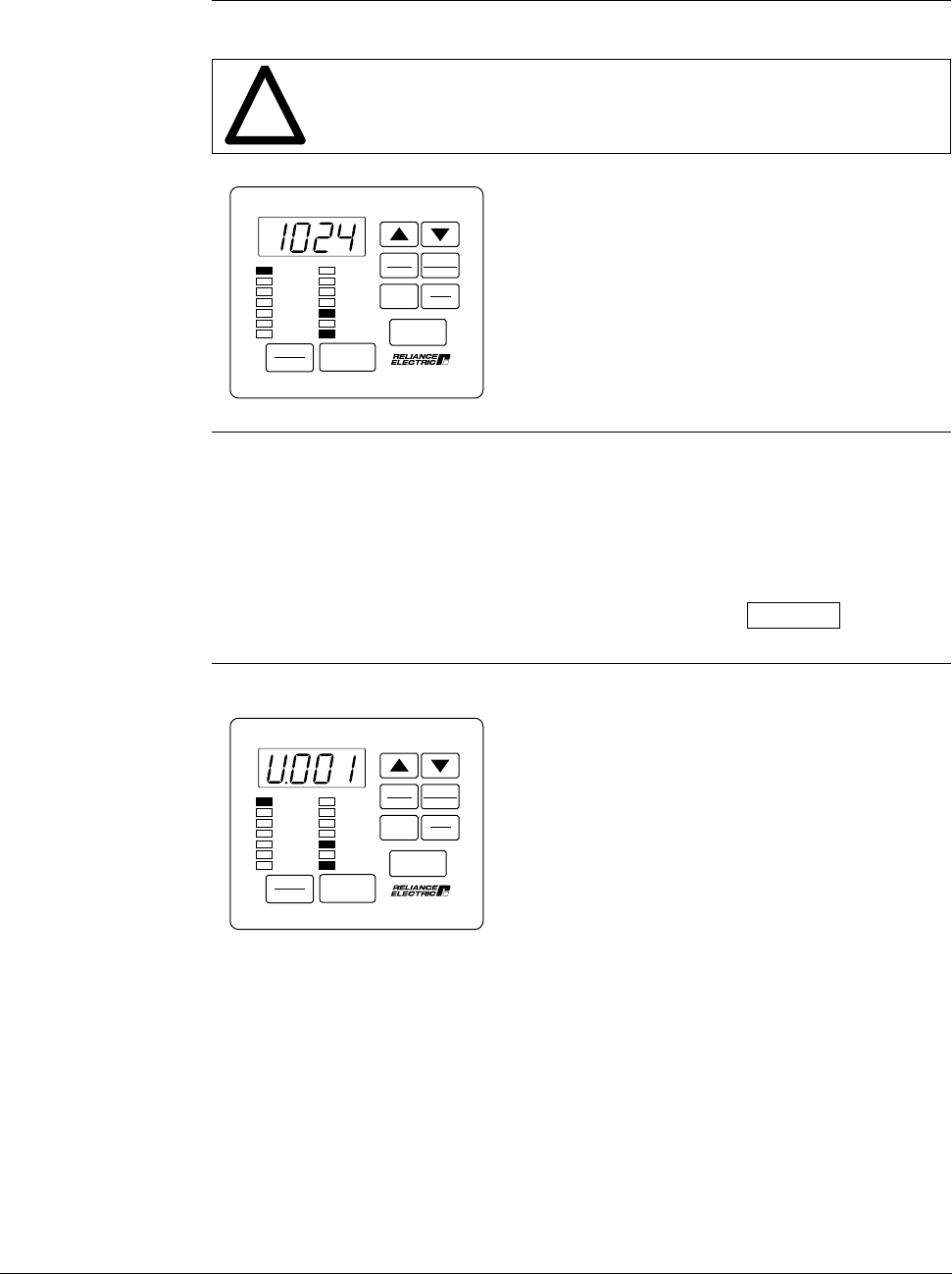

Step 6.8 Press the ENTER key to display the default setting of U.001.
ATTENTION: Do not use a 4096 PPR encoder with 2-pole motor.
Overspeed and motor damage can result. Failure to observe this
precaution could result in bodily injury.
This displays the default setting for Encoder
PPR, 1024 PPR.
!
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6.9 Press the £ key to increase the PPR, or the ¥ key to decrease the PPR.
Select one of the four PPR values if an
encoder is used. Select SE if an encoder is
not used. See the description of U.001 in
Chapter 4 for more information.
VALUE ENTERED:
Step 6.10 Press the ENTER key to save the changed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
