2-15
Starting Up the Drive for Vector Regulation

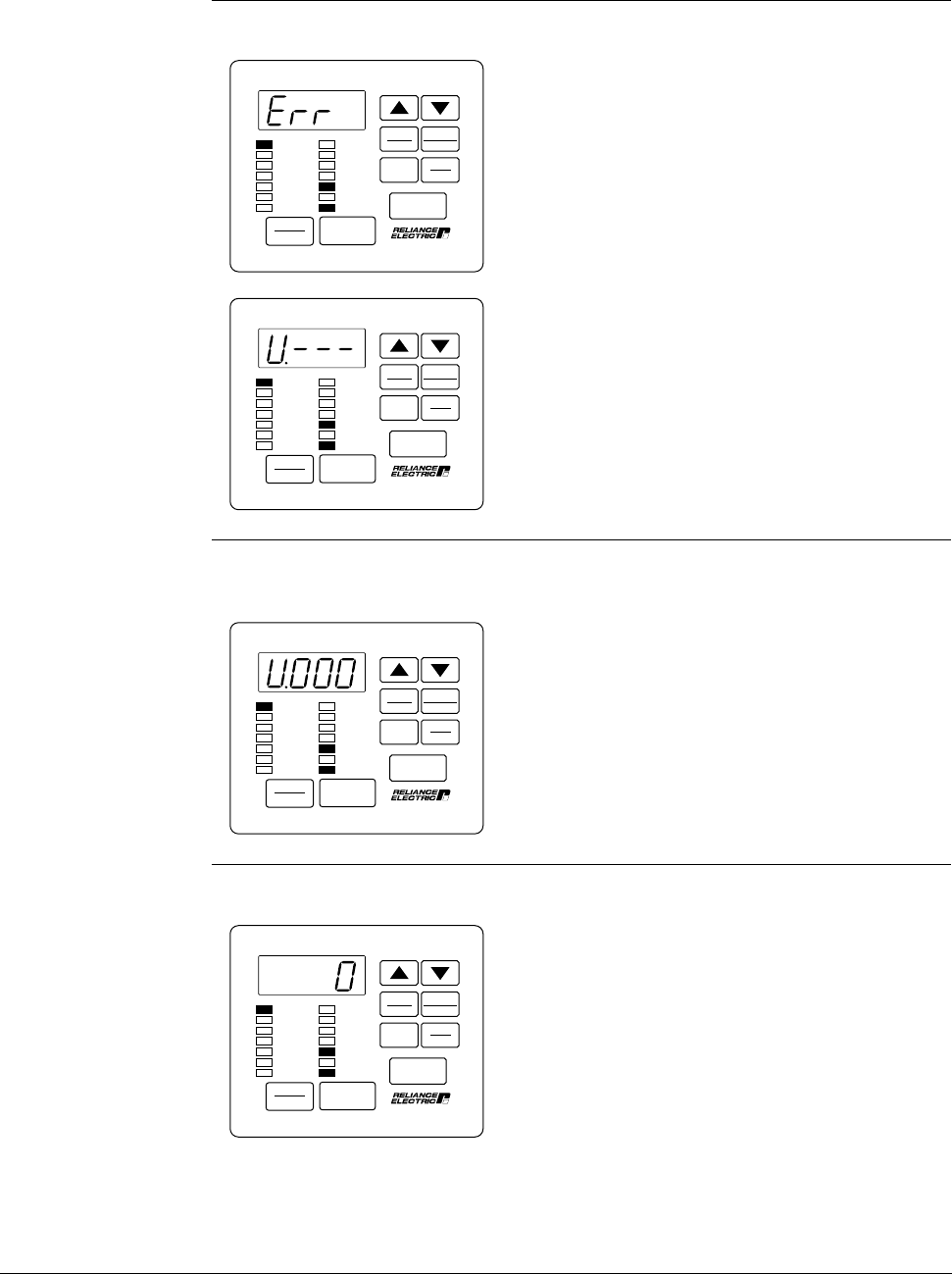

Step 6.2 Press the £ key twice.
The error log (Err) is bypassed, then ......
.... the Vector (U) parameter main menu is
displayed.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6.3 Press the ENTER key to access the first Vector parameter, which is
U.000, Torque Reference Source.
This parameter specifies the source for the
torque reference. The source can be the
output of the speed loop (the default), the
analog input, the option port, or the selected
speed reference. This procedure assumes
that the torque reference is taken from the
speed loop.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6.4 Press the ENTER key to display the default setting of U.000.
This displays the default setting for the
Torque Reference Source, which is 0.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
