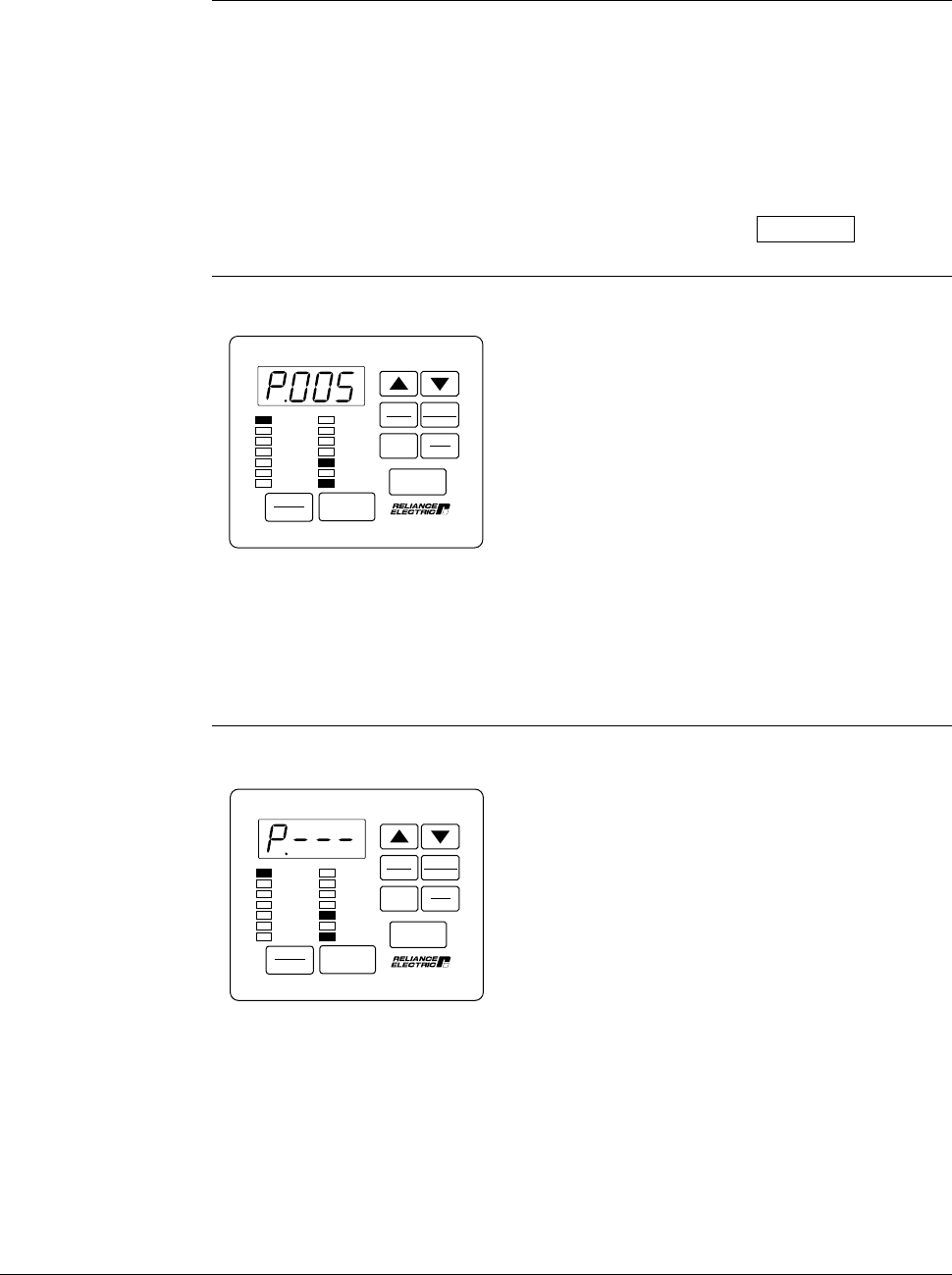

2-14
GV3000/SE 230 VAC Drive, Software Reference Version 6.04
The adjustment range for current limit is:
U.006 (Magnetizing Current) to 150%.
VALUE ENTERED:
Step 5.21 Press the ¥ key to decrease current limit percent.
Note that changing current limit rating affects the maximum attainable
torque the motor can produce.
Step 5.22 Press the ENTER key to save the entered value.
After pressing ENTER, the same parameter
number is displayed. You can now move to
the next parameter.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6. Program the Second Menu Vector (U) Parameters
This step describes how to program the Vector (U) parameters that apply to vector
regulation only. You will not be adjusting any parameters for V/Hz regulation (H
parameters) in this procedure.
Step 6.1 Press the PROGRAM key to return to the main menu level.
The display will return to the First Menu
General (P) parameters.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
