2-7
Starting Up the Drive for Vector Regulation

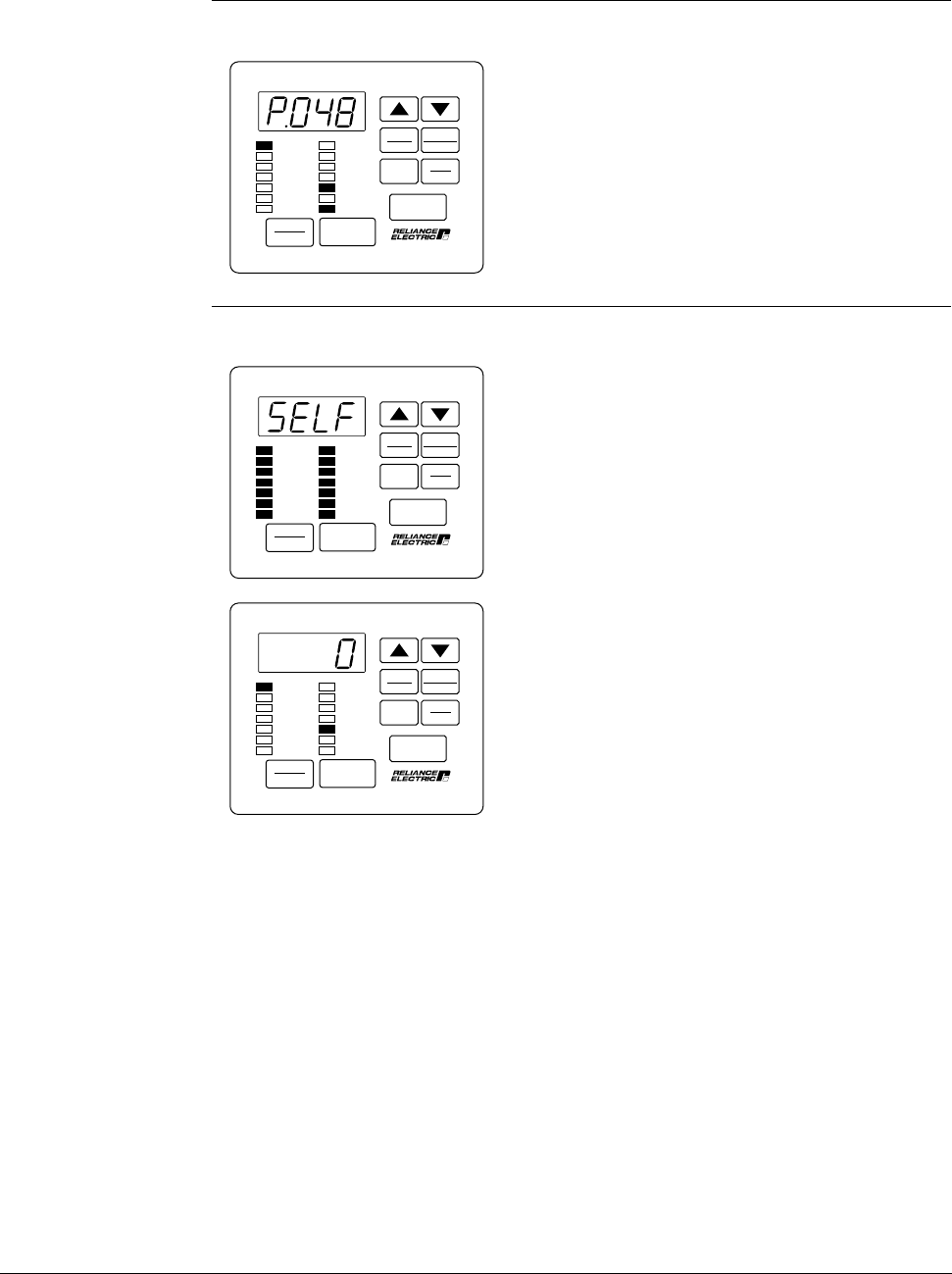

Step 4.4 Press the ENTER key to save the setting.
After pressing ENTER, the same parameter
number is displayed. You can now go to the
next step.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 4.5 Note the display.
After the regulation selection is changed, the
drive will perform diagnostics and displays
SELF, with all monitor mode and status
LEDs on.
When the diagnostics are complete, the
keypad/display will enter monitor mode with
speed displayed.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
