2-6
GV3000/SE 230 VAC Drive, Software Reference Version 6.04
Step 4. Program the Drive for Vector Regulation
This step describes how to change parameter P.048 (Volts/Hertz or Vector
Regulation) to vector.
Within vector regulation, you can program the drive for flux vector control (FVC) or
sensorless vector control (SVC). FVC operation requires an encoder. SVC
operation does not require an encoder. Both options require U.048 to be set to
UEC. In a later step, you will select either the FVC option or the SVC option.
When you enter the value for vector regulation (P.048 = UEC), the drive will
performs a diagnostic check. After the diagnostics, the drive enters monitor mode
with speed displayed.

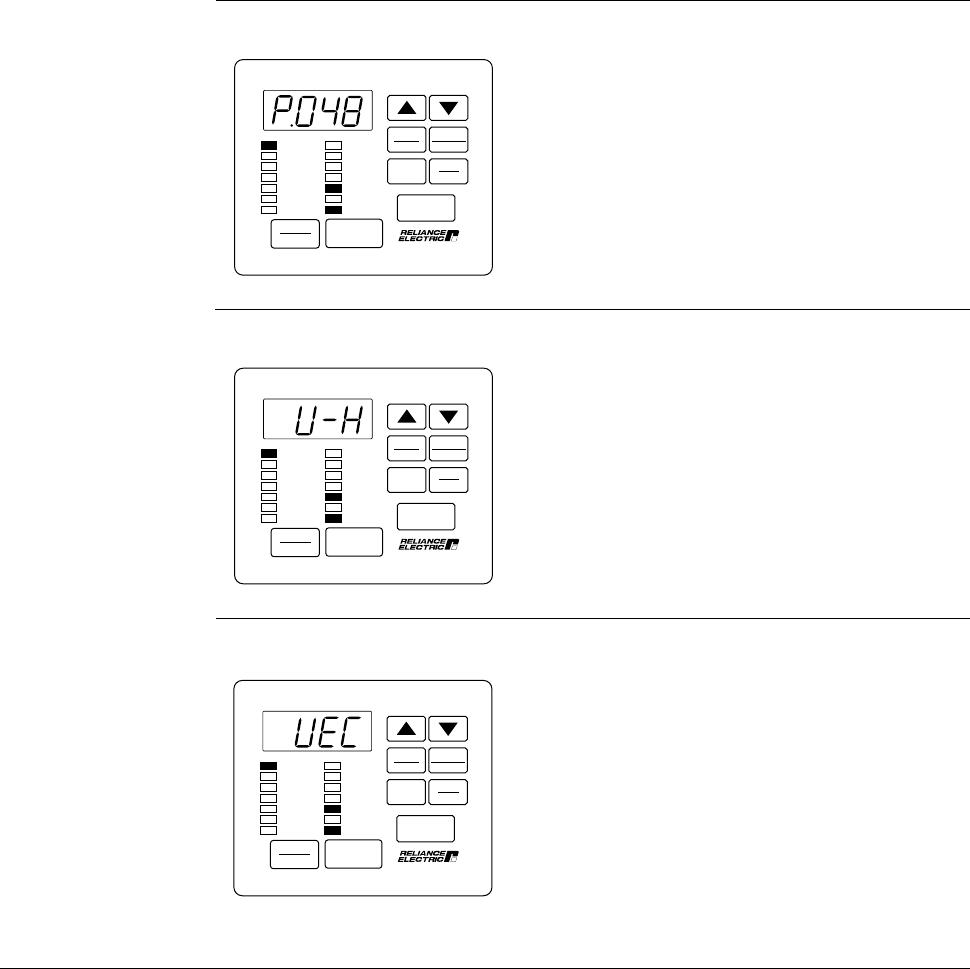

Step 4.1 Press the £ key until P.048, Volts/Hertz or Vector Regulation, is displayed.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 4.2 Press the ENTER key.
The default setting for P.048 is V/Hz
regulation.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 4.3 Press the £ key to display UEC, vector regulation.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
