Software Start-Up and Ref. Owner manual

1-23

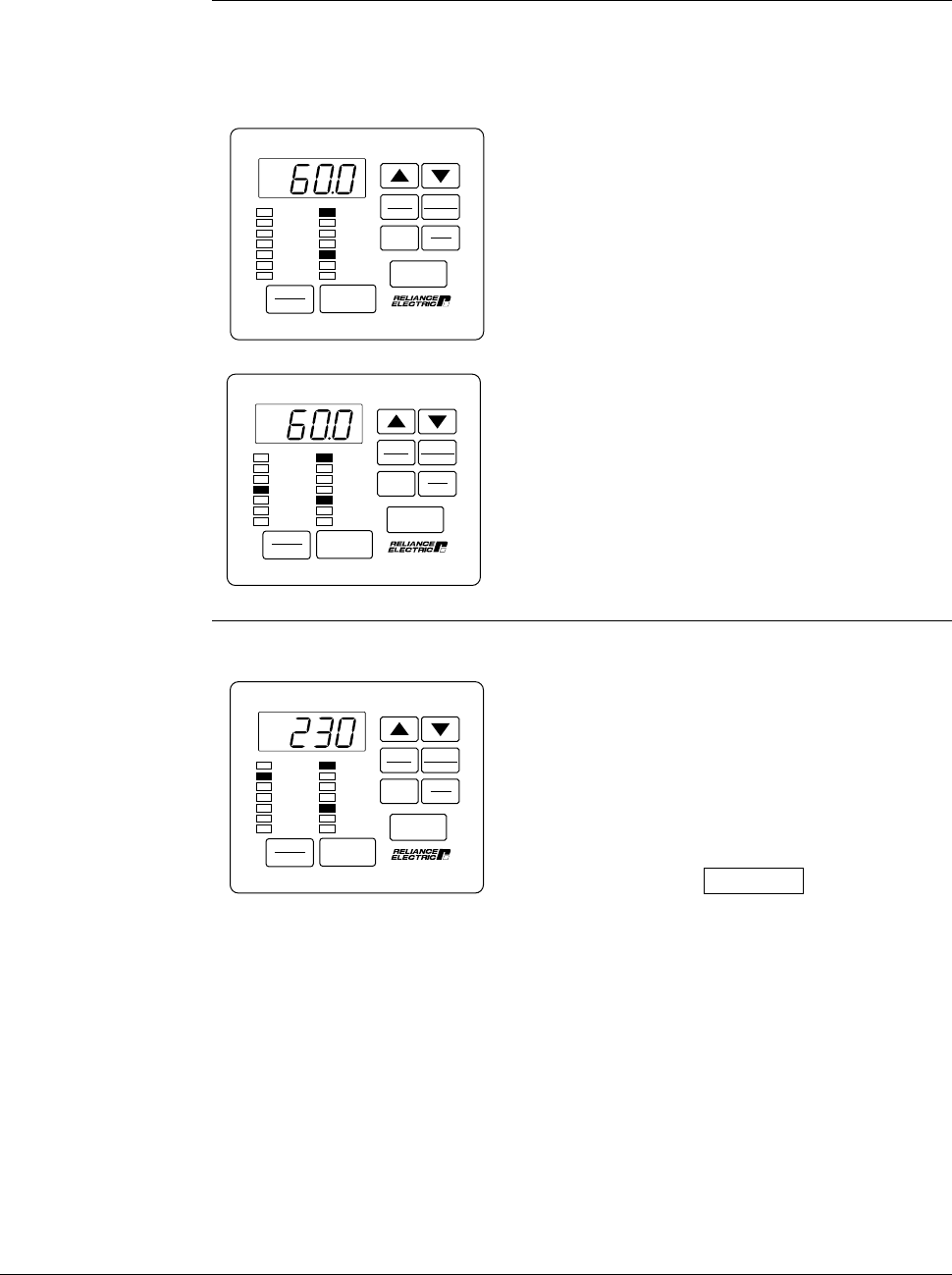

Starting Up the Drive for Volts/Hertz Regulation
This example shows the output volts at
Maximum Speed (P.004). Your actual
reading may be different.
VALUE READ:
Step 8.2 Press the £ or ¥ key once. All of the monitor mode LEDs turn off.
Increase the speed reference to the maximum value by using the £ key.
Wait five seconds or press the ENTER key to return to monitor mode.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
This increases the drive speed reference
and the motor will rotate up to maximum
speed.
The monitor mode LEDs turn off when the
reference is changed.
The display now shows the drive speed.
Your speed display may be different.
Step 8.3 Press the ENTER key to move to the VOLTS display.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
