1-21
Starting Up the Drive for Volts/Hertz Regulation

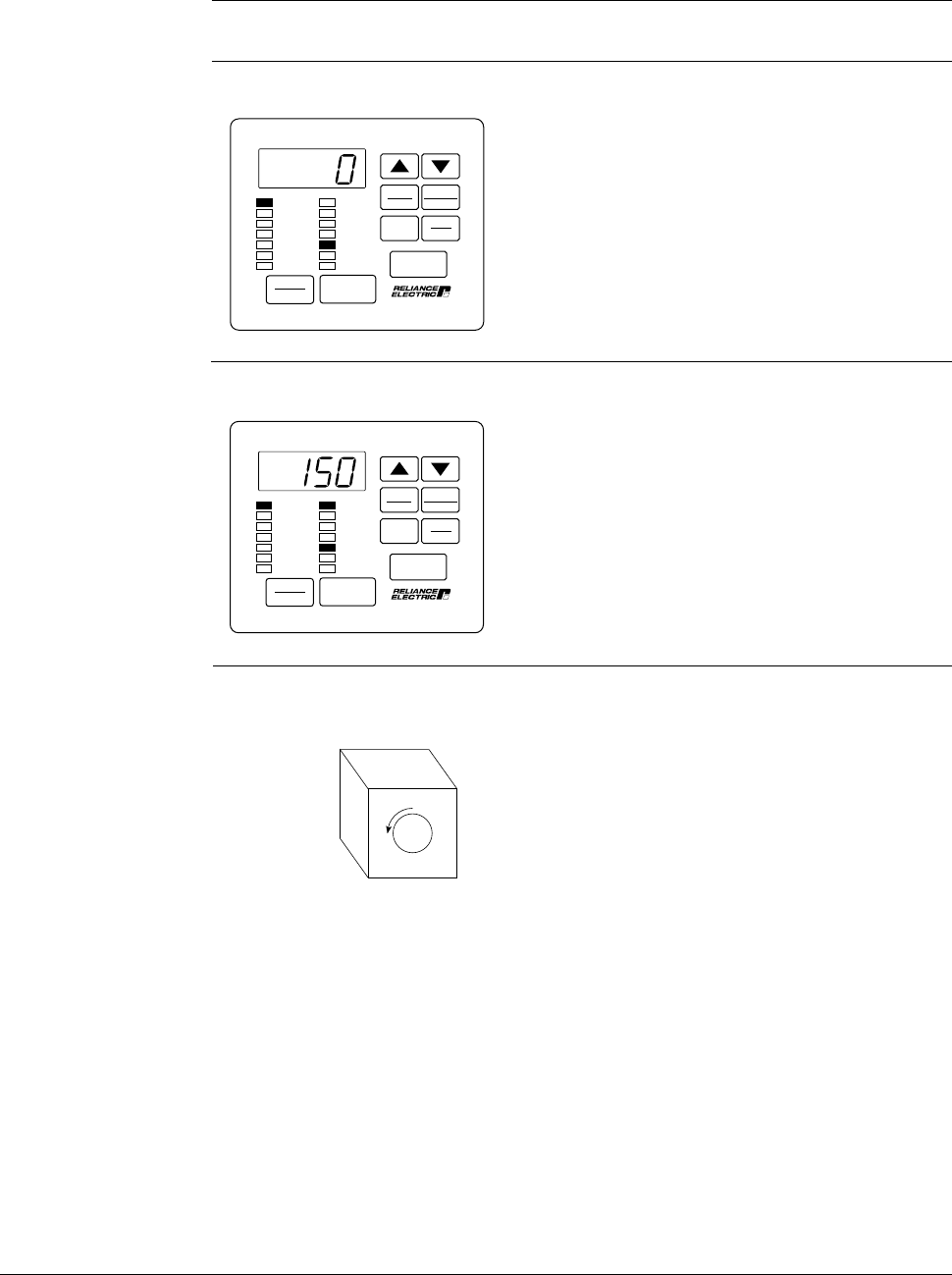

Step 7.5 Press the ¥ key to decrease the speed reference value.
Step 7.6 Press the ENTER key to return to monitor mode.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 7.7 Verify that you have selected RUN and FORWARD. Press the START key.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
The drive is now running. The keypad/
display is in monitor mode and the SPEED,
RUNNING, and FORWARD LEDs are on.
The drive should be running at minimum
speed. The sample display shows 150
RPM.
Step 7.8 Visually check that the motor rotates counter-clockwise (CCW) when
viewed from the driven motor shaft end.
CCW
