GV3000/SE 230 VAC Drive, Software Reference Version 6.04

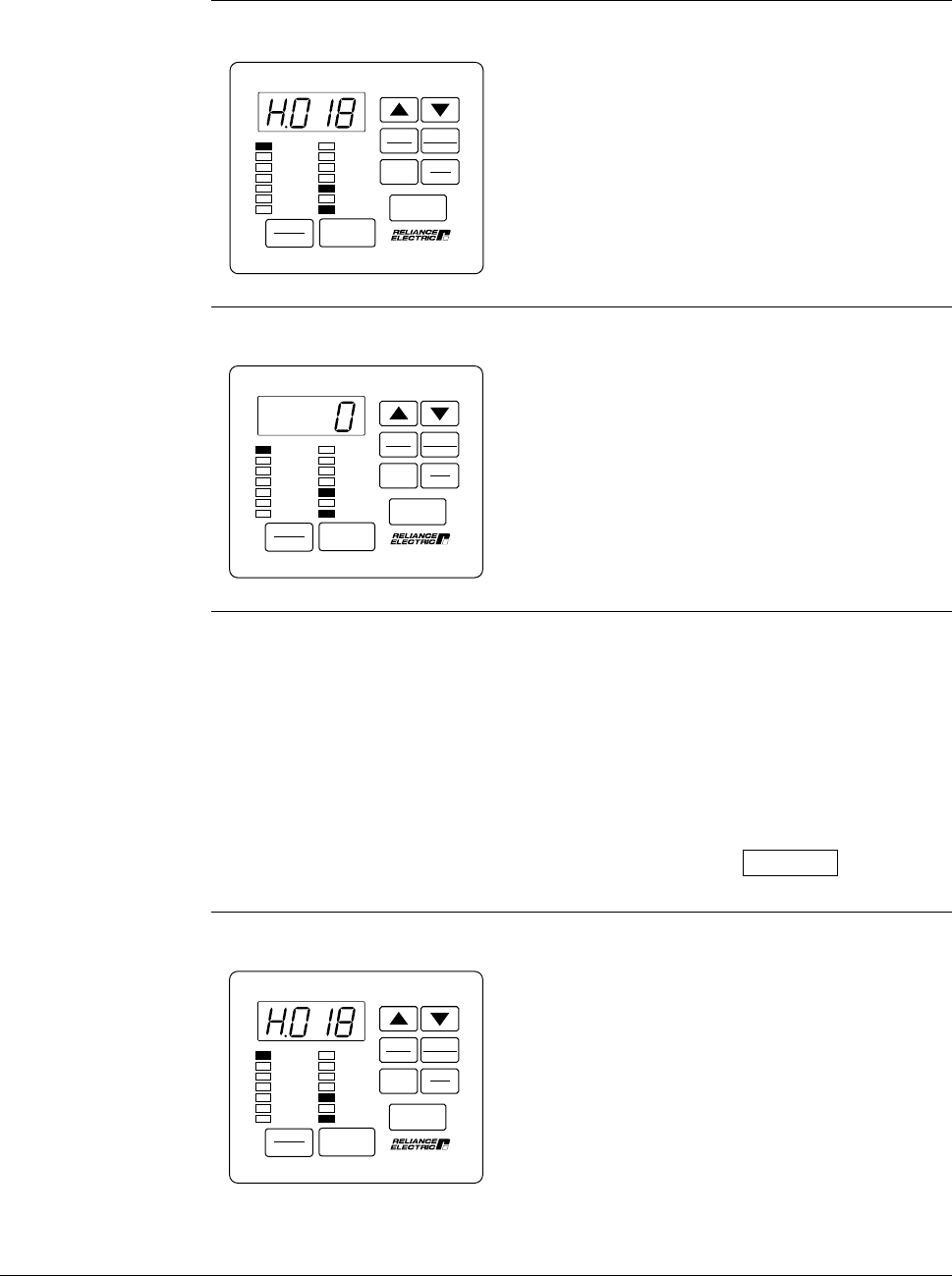

Step 5.22 Press the £ key until H.018, Volts/Hertz Curve Type, is displayed.
This parameter selects the type of curve for
volt/hertz regulation. See chapter 4 and step
5.24 for more information.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 5.23 Press the ENTER key.
The default setting is 0 for linear curve.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 5.24 Press the £ key to increase the selection value to 1 or 2, or leave it at 0.
The adjustment range is:
0 = Linear curve
1 = Optimized curve for Reliance Electric
RPM AC motors
2 = For centrifugal pump and fan motor
applications
VALUE ENTERED:
Step 5.25 Press the ENTER key to save the changed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
