1-16
GV3000/SE 230 VAC Drive, Software Reference Version 6.04

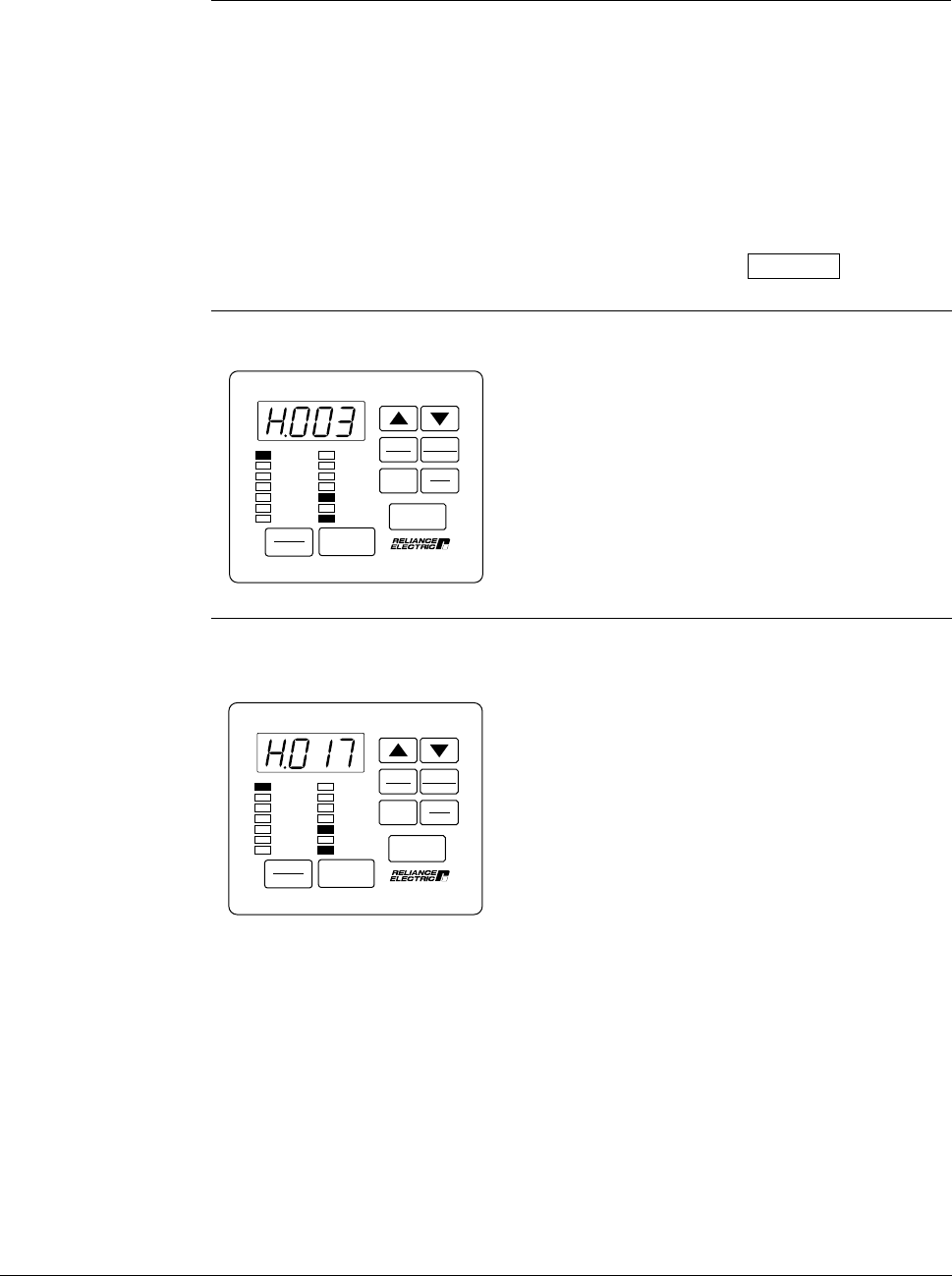

Step 5.16 Press the £ key to increase the torque boost voltage, or the ¥ key to
decrease torque boost voltage.
Important:
If you set H.003 = 0, you must perform the identification test, controlled by
H.020, prior to running. Refer to the H.020 parameter description for
more information.
The adjustment range is:
0.0% to 20.0%
VALUE ENTERED:
Step 5.17 Press the ENTER key to save the changed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 5.18 Press the £ key until H.017, Input Power/Snubber Configuration, is
displayed.
This parameter selects the input power
supply type/snubber resistor kit
configuration. See chapter 4 for more
information.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
