Software Start-Up and Ref. Owner manual

1-15

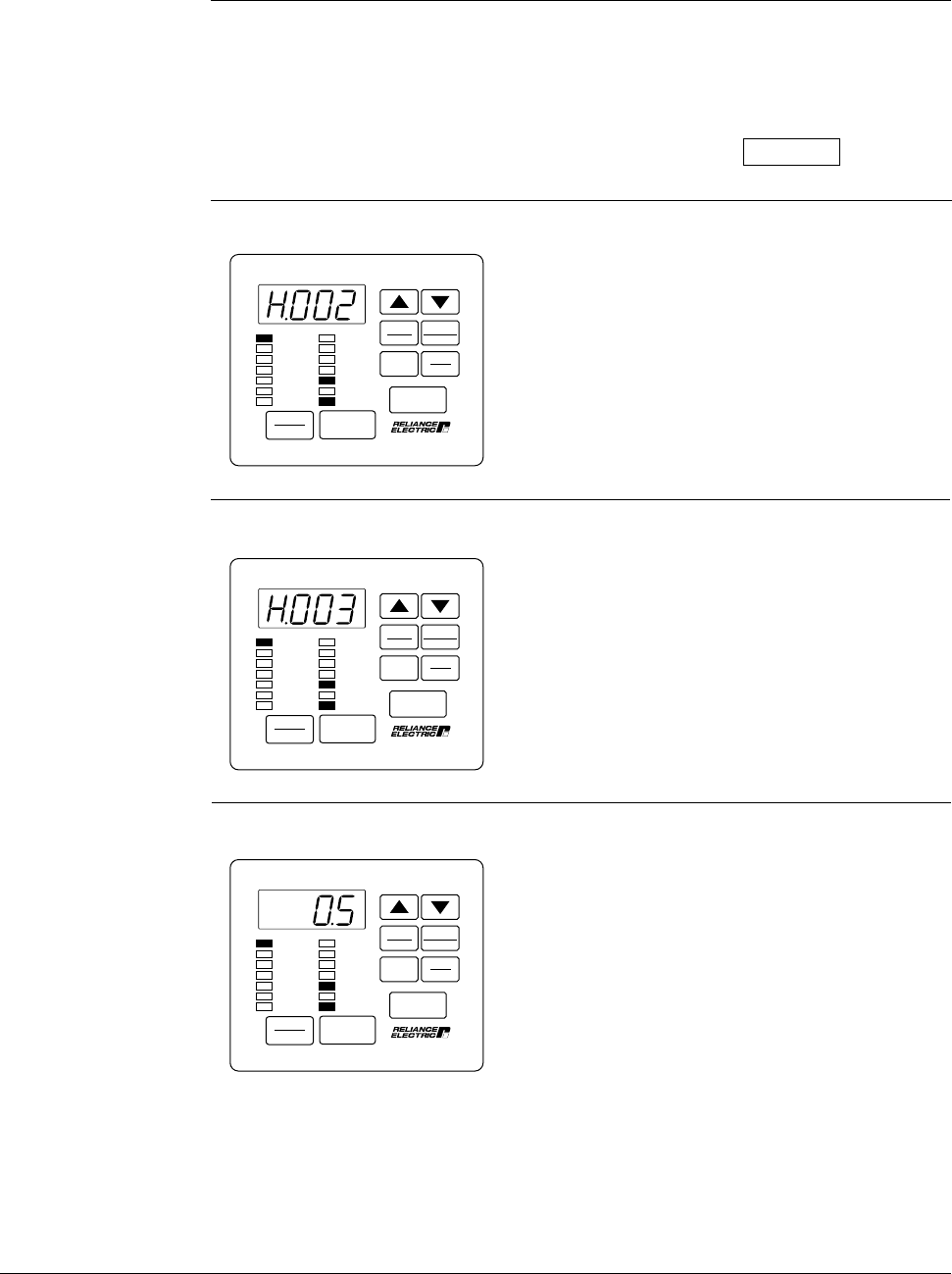

Starting Up the Drive for Volts/Hertz Regulation
Step 5.12 Press the £ key to increase the motor nameplate amps, or the ¥ key
to decrease motor nameplate amps.
The adjustment range depends on the drive
rating. See Appendix C.
VALUE ENTERED:
Step 5.13 Press the ENTER key to save the changed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 5.14 Press the £ key to display H.003, Torque Boost Voltage.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
This parameter is required to offset the
voltage drop of the motor at low speeds and
produce constant torque. For example, high
friction loads may require high starting
torque.
Refer to figure 4.11 in chapter 4 for more
information.
Step 5.15 Press the ENTER key.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
The default setting is 0.5.
