Software Start-Up and Ref. Owner manual

1-11
Starting Up the Drive for Volts/Hertz Regulation

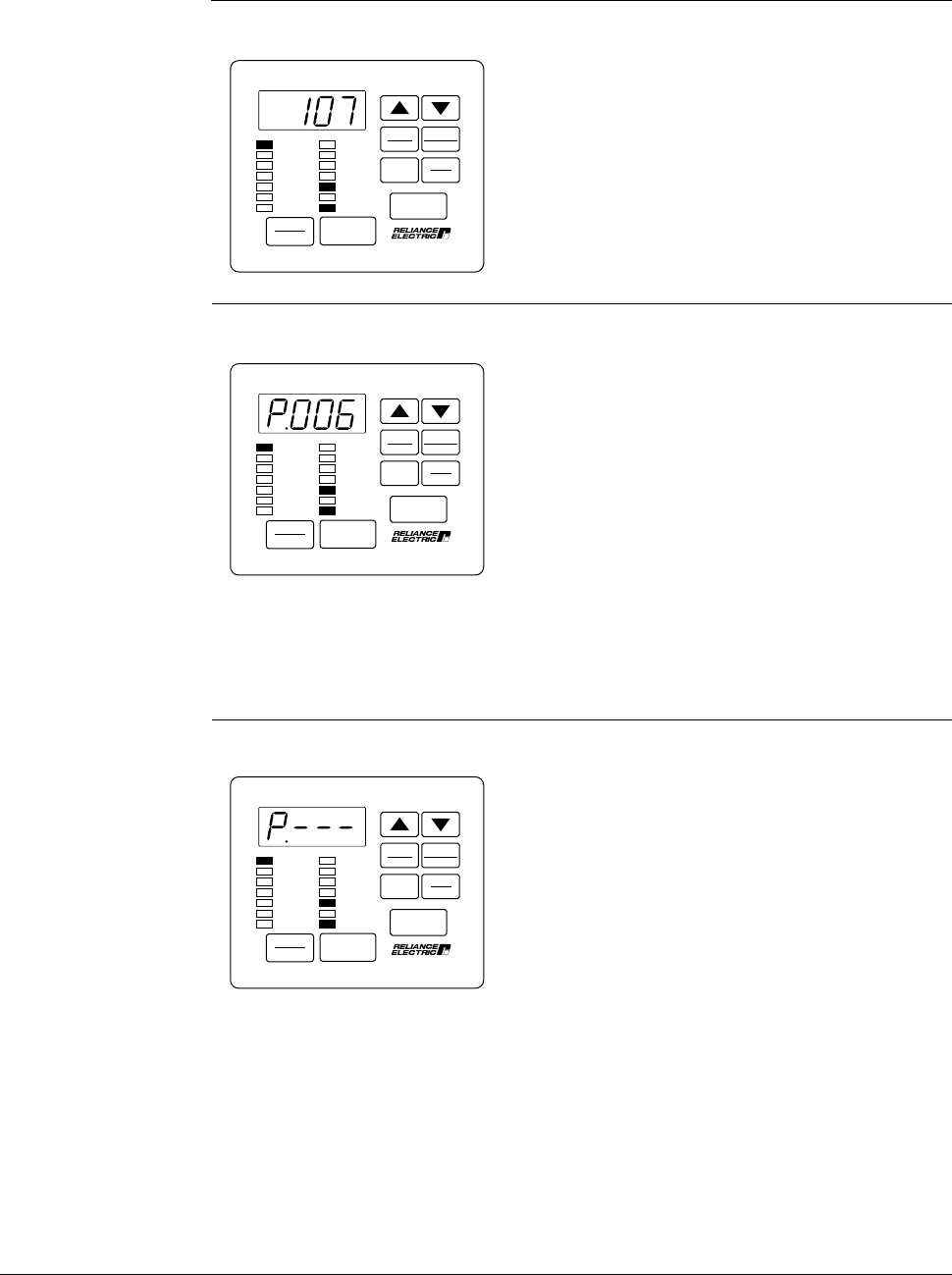

Step 4.3 Press the £ key until the password number 107 is displayed.
Note that the password, and access to the
Second Menu, will be retained if the drive
loses and regains power.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 4.4 Press the ENTER key to save the password number.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
After pressing ENTER, P.006 is displayed.
You now have access to all parameters and
the error log.
After the password is entered, the parameter
value is reset to 0.
Step 5. Program the Second Menu Volts/Hertz (H) Parameters
This step describes how to program the parameters that apply to V/Hz regulation
only.
Step 5.1 Press the PROGRAM key to return to the First Menu.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
The display returns to the General (P)
parameters in the First Menu.
