Software Start-Up and Ref. Owner manual

1-9
Starting Up the Drive for Volts/Hertz Regulation
Use the following equation to calculate
current limit:
Motor Rated Amps
(1)
Rated Drive Output Amps
(2)
(1)
From motor nameplate
(2)
See the hardware reference manual for
ratings.
Adjustment Range: 50 to 110
VALUE ENTERED:
x 100

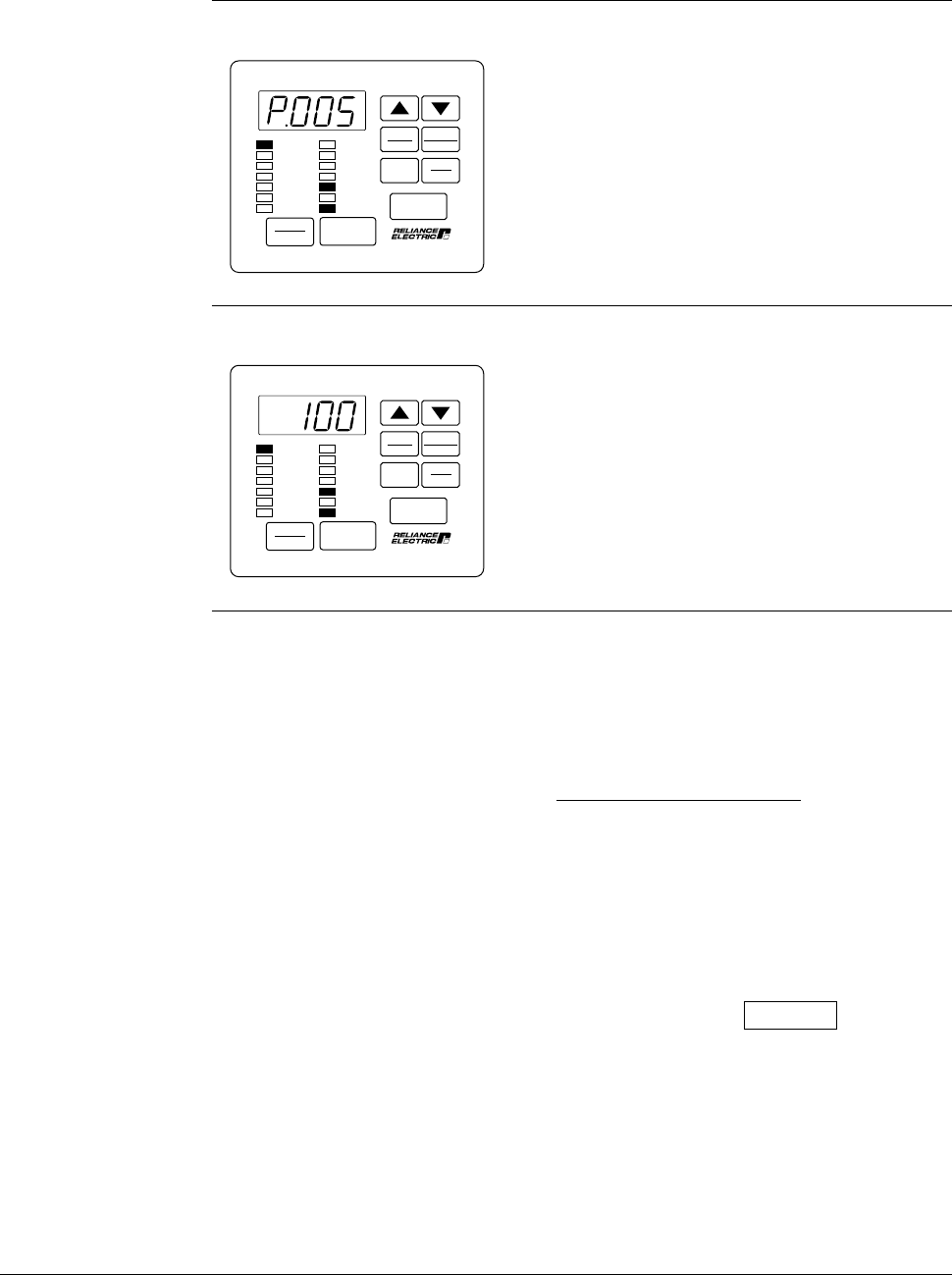

Step 3.18 Press the £ key to display P.005, Current Limit.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
This parameter sets Current Limit, which
corresponds to the value in parameter
P.095, Power Module Output Amps.
Step 3.19 Press the ENTER key to display the default setting of P.005.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
This shows that the default setting for
Current Limit is 100.
Step 3.20 Press the ¥ key to decrease current limit. Decrease current limit only
if the motor nominal current rating is less than the drive nominal current
rating.
