G-8
GV3000/SE 230 VAC Drive, Software Reference Version 6.04

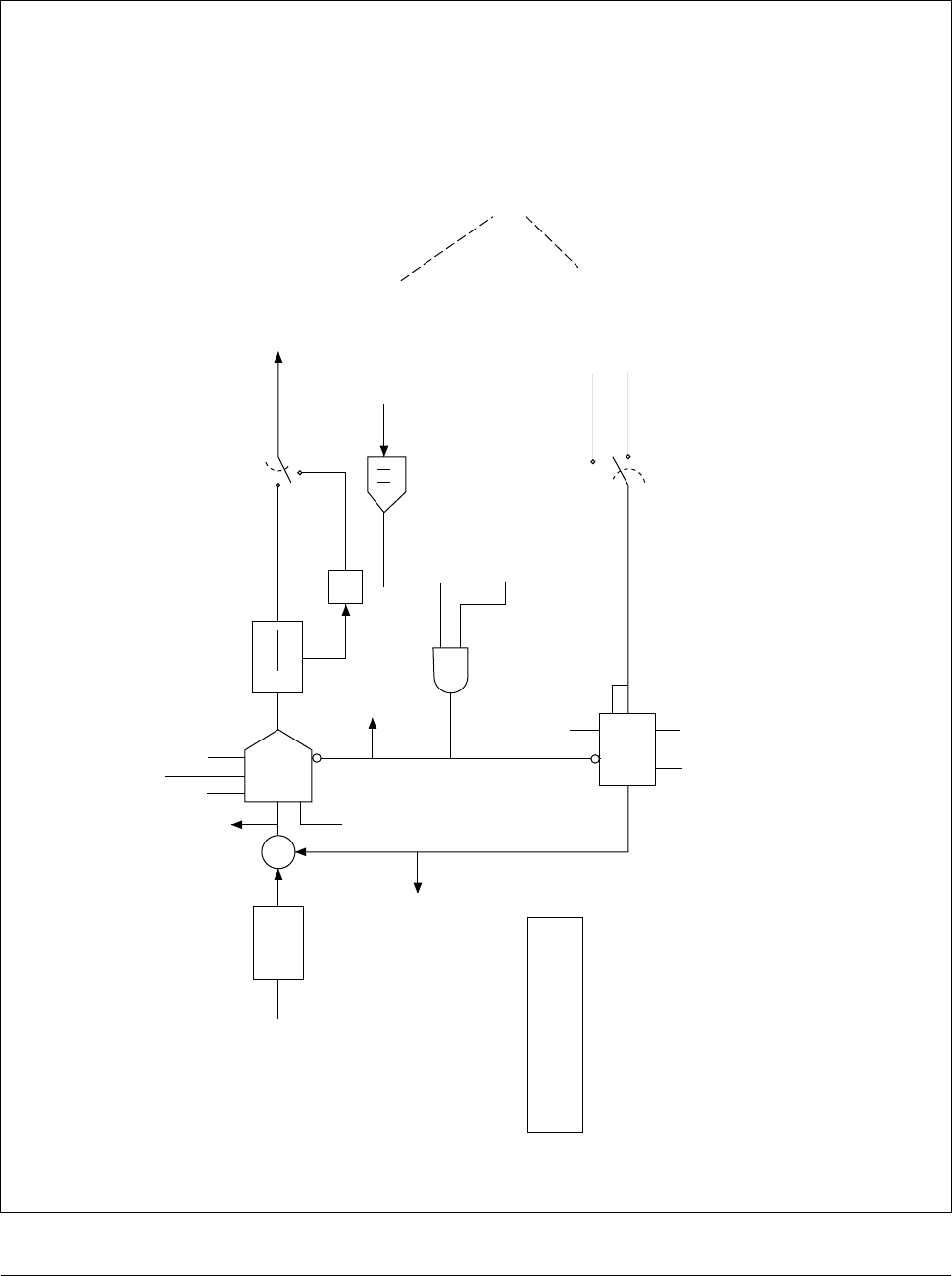

Figure G.7 – Outer Control Loop Block Diagram
Network trim reference
(direct or broadcast
(P.064)),
RMI analog in,
or Preset Speed 8
(P.038)
x U.044
+
–
*
*
*
*
*
PI
Lim
Init
Rst
Kp (U.045)
Ki(U.046)
+/-4095
0
OCL feedback
*
Available in netwoek read
registers
U.047
100
x
OCL enabled
(d1, r26, b2)
OCL L/L Ratio
(U.043)
Lead/Lag
Rst
Init
Input
OCL L/L Select
(U.041)
OCL L/L Low
Freq (U.042)
Netw OCL enable bit (d1, r32, b5), RMI
digital input, or TRUE if no option board
installed
Running
1
0
OCL fdbk select
(U.040)
Speed PI Output (torque ref)
Scaled TS Analog Input
(4095 @ 10 VDC)
G
Div
U.017
Mult
Spd ref S-curve block
output
ON
OFF
OCL Prop Trim
Enable (U.048)
OCL output
(to speed loop block diagram)
(From speed loop block diagram)
20 msec scan period
x
