Troubleshooting the Drive Using Error Codes
Step 3. Press the ENTER key.
If no faults have occurred, Err will be
displayed again. If only one fault has
occurred, the fault code will be displayed as
the first entry in the log. If more than one
fault has occurred, the first entry is the latest
fault that occurred.

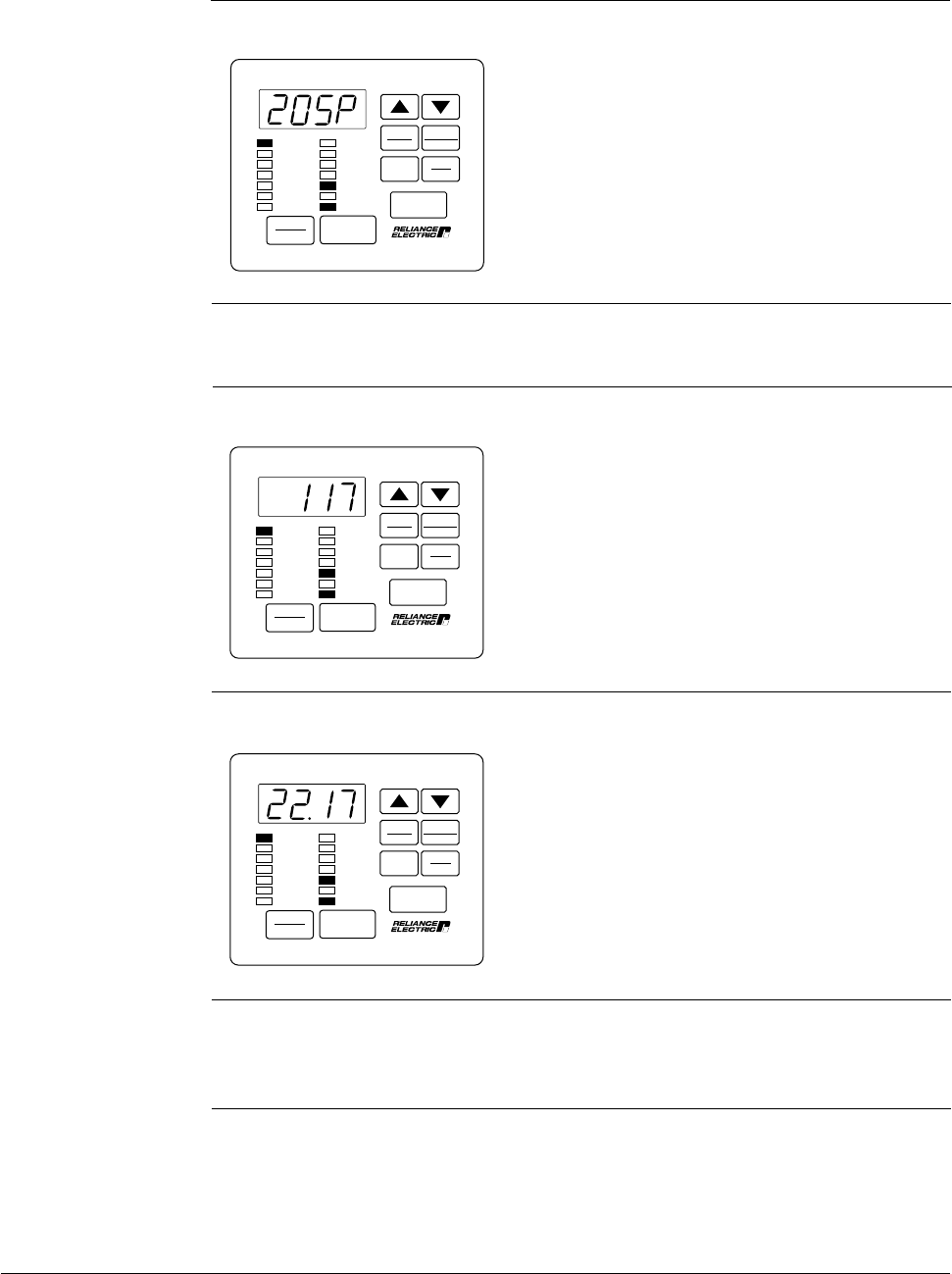

Step 4. Press the £ key or the ¥ key. The display steps through the error log
entries, which are numbered 0 through 9 (maximum).
Step 5. Press the ENTER key.
The display shows the day stamp, which can
range from 0-248 days.
Step 6. Press the ¥ key.
The display shows the time stamp, which is
based on a 24-hour clock. Use the arrow
keys to move between the day and time
data.
Step 7. Press the PROGRAM key, which displays the error log entries again. The
display shows the error log entry viewed prior to or associated with the
time stamp.
Step 8. Repeat steps 4 through 7 for each additional error log entry to view the
time and date for each error log entry.
