5-6
GV3000/SE 230 VAC Drive, Software Reference Version 6.04
5.3 Accessing, Reading, and Clearing the Faults in the Error
Log
The following procedure shows how to access and clear the error log. Note that you
cannot clear a single entry from the error log. The entire log, including all the fault
codes and the day and time stamp of each fault, will be cleared simultaneously
using this procedure.

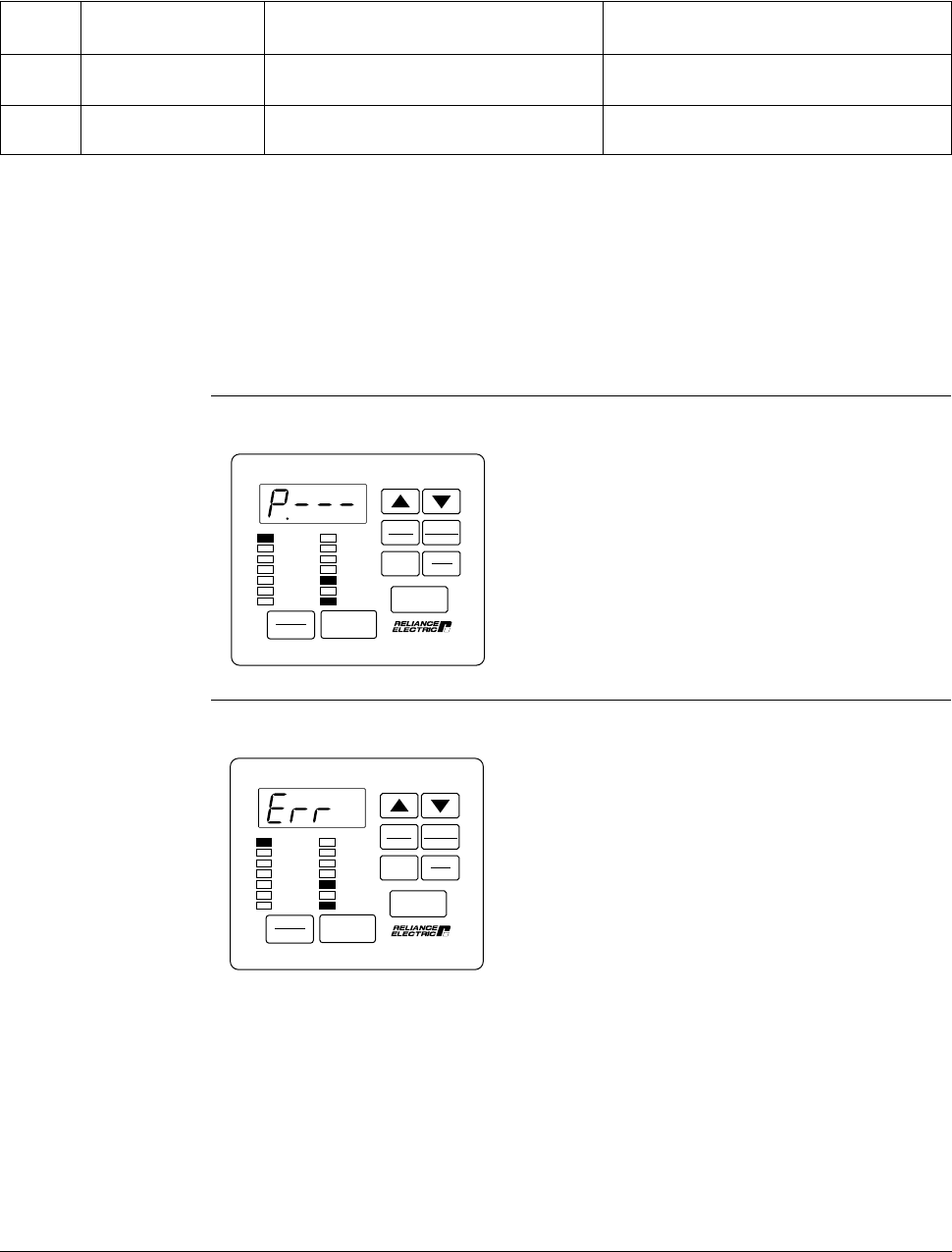

Step 1. Press the PROGRAM key.
The First Menu General parameters are
displayed. The PROGRAM LED will turn on.
Step 2. Press the ¥ key until Err is displayed.
Table 5.2 List of Fault Codes (Continued)
Fault
Description
Spurious host PC
comm interrupt
Asymmetrical bus
charge
Code
UAr
UbS
Fault Cause
Regulator board failure.
Bad Power Module.
Corrective Action
Replace Regulator board.
Contact Reliance.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
