Software Start-Up and Ref. Owner manual

1-4
GV3000/SE 230 VAC Drive, Software Reference Version 6.04

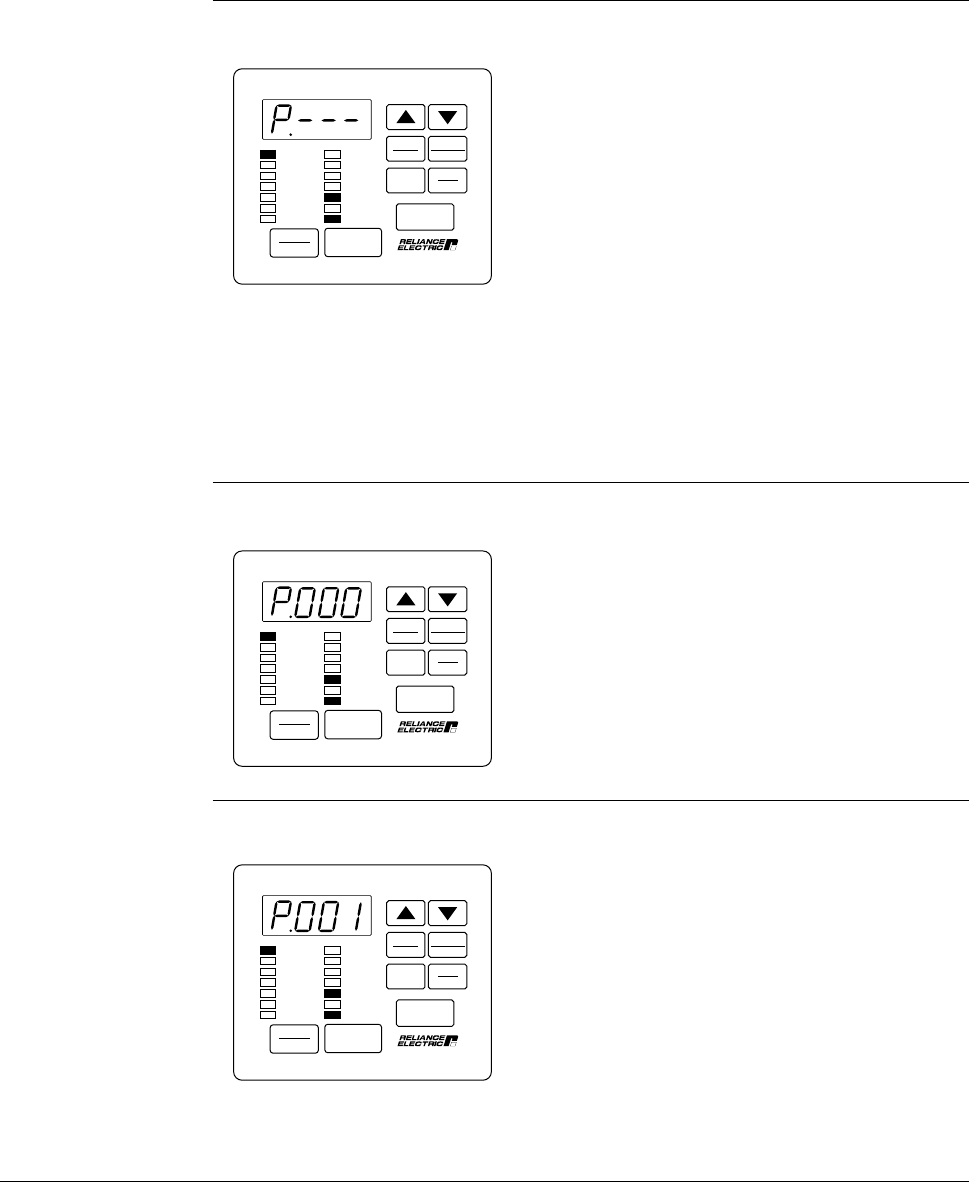

Step 2. Select Program Mode
In this step, you will select program mode, which will give you access to the First
Menu General (P) parameters.
Press the PROGRAM key.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
The PROGRAM LED is on and the First
Menu General (P) parameters can be
accessed.
Step 3. Program First Menu General Parameters P.000 - P.005
This step describes how to change First Menu General (P) parameters P.000
through P.005. P.000 selects where the drive is controlled from. This procedure
assumes local control from the keypad (P.000 = LOCL), which is the default setting
for the parameter.
Step 3.1 Press the ENTER key to display the first parameter, P.000, Control Source.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
The default setting for P.000 is LOCL, or
local control.
Step 3.2 Press the £ key to display P.001, Accel Time 1 (RAMP 1).
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password
RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
This parameter sets the acceleration time in
seconds.
