4-34
GV3000/SE 230 VAC Drive, Software Reference Version 6.04

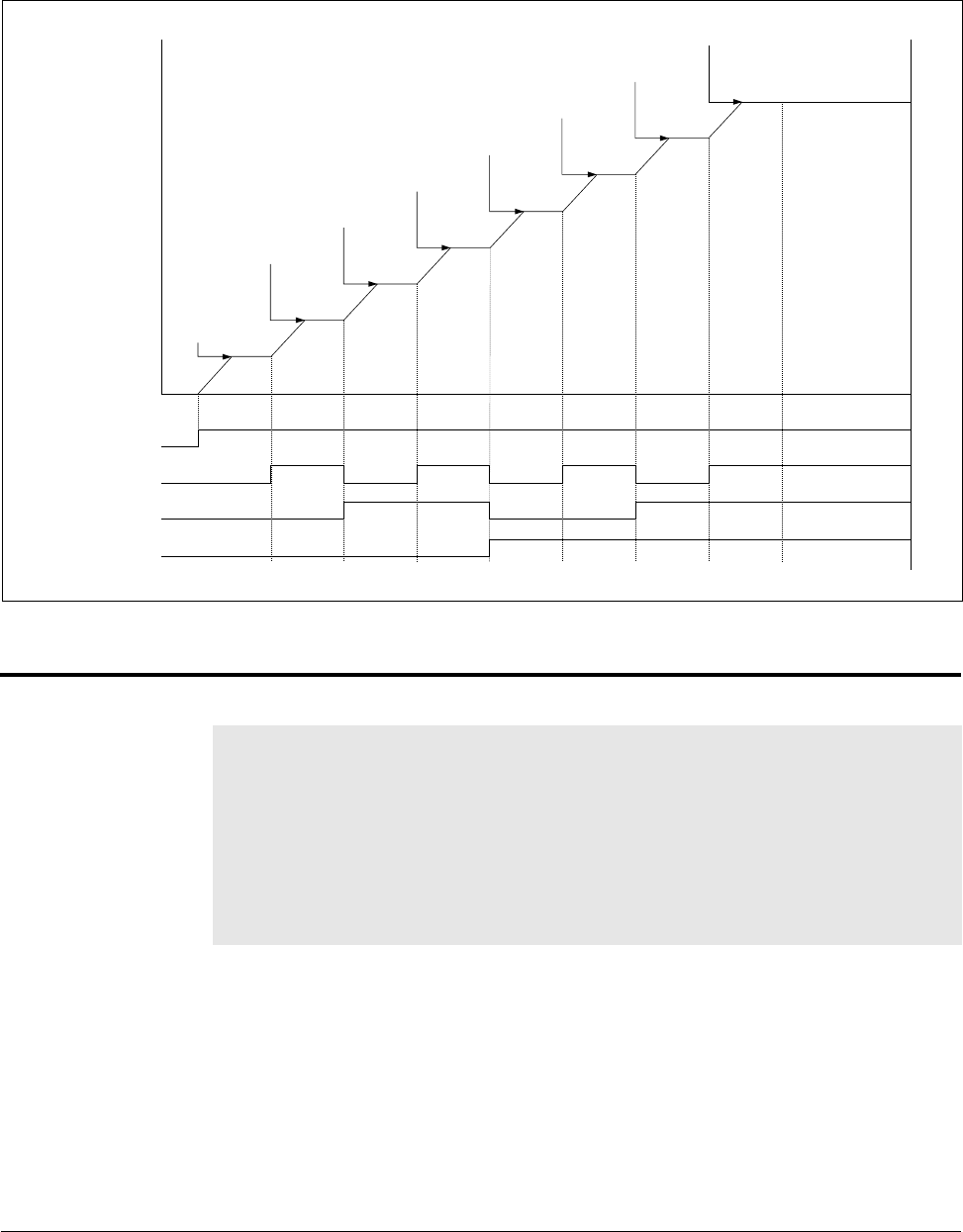

Figure 4.6 – Typical Preset Operation
P.031 to P.038 Preset Speed 1 Through Preset Speed 8
(continued)
P.039 Encoder Loss Enable
This parameter
enables the encoder
loss detection
diagnostic.
This diagnostic is
available for flux
vector control (FVC)
only.
Parameter Range: OFF = Disable encoder loss diagnostic
ON = Enable encoder loss diagnostic
Default Setting: OFF
Parameter Type: Tunable
Refer also to parameters: N/A
The encoder loss detection diagnostic is functional only when the drive is operating
as a speed regulator (not as a torque regulator).
When the diagnostic is enabled and feedback from the encoder is not detected, a
drive fault will be logged (EL will be displayed).
If the encoder fails, loss will be detected down to 1 RPM. If only one of the
quadrature feedback wires is disconnected, loss may not be detected below 15
RPM.
P.038
P.037
P.036
P.035
P.034
P.033
P.032
P.031
Preset 1
(or TS
Analog in)
Digital In 6
(Term. 19)
Digital In 7
(Term. 18)
Digital In 8
(Term. 17)
Run and Start
Closed
Closed
Closed
Closed
Closed Closed
Closed
Closed
