User Manual

3
Specifications
Coupling Nut NickelĆPlated Brass
Connector Molded oilĆresistant polyurethane body
Contacts Gold over nickelĆplated brass
Cable OilĆresistant PVC jacket, 22AWG conductors, 300V, UL recognized and
CSA certified
Cable O.D. 4/c = 5mm (0.21in)
5/c = 6.5mm (0.25in)
Temperature
-20_C to +105_C (-4_F to +221_F)
Features
S UL recognized and CSA certified
S Ratcheting coupling nut (on 4-pin DC cordsets)
S Highly visible yellow PVC jacket offers good oil and
chemical resistance

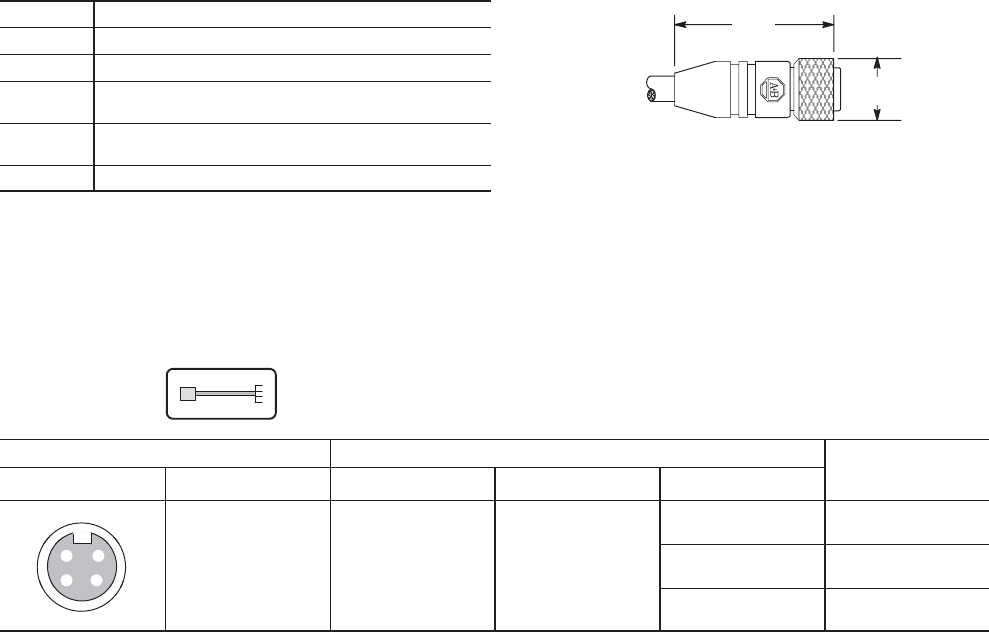

Dimensions—mm (in)
Dimensions are approximate.
Illustrations are not drawn to scale.
15
(0.57)
42
(1.7)
Straight Female
Selection Guide
Female Connector (Sensor End) Cable
Face View of Female Connector Style Wire Color Wire Rating LengthĊm (ft)
Catalog Number
1 Brown
22AWG
2 (6.5) 889D-F4AC-2
12
34
Straight
1
Brown
2 White
3 Blue
4Bl k
22AWG
300V
3A
5 (16.4) 889D-F4AC-5
34
4 Black
3A
10 (32.8) 889D-F4AC-10
