Owner manual

Chapter 4
Defining Formulas
4–47

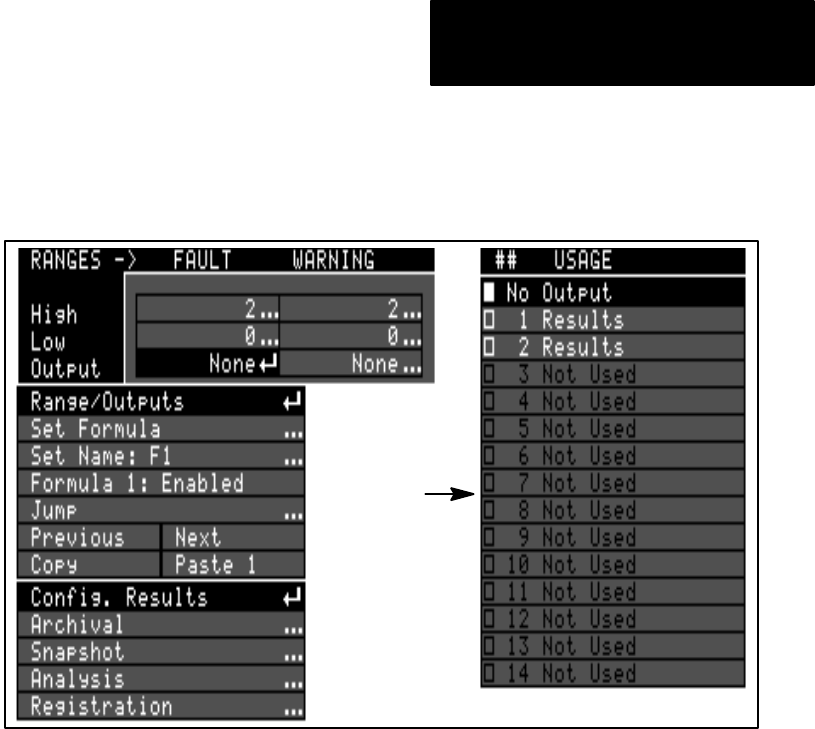

Figure 4.25 Selecting output lines for range limits
USAGE
menu
Enabling Results and Range Limits for Corresponding Tools
Any formula you select and enable will disable the use of results outputs
from a corresponding gage or window, as listed in Table 4.A, page 4–3. In
order to use the results from a tool which corresponds to a formula in use,
you must disable the formula, then enable the tool results, as described
below:
• Disable the formula (see “Enabling / Disabling a Formula” in this
chapter) which corresponds to the tool (as listed in Table 4.A, page 4–3).
• Pick the Range/Reference box on the corresponding gage or window
(see Figure 4.26, page 4–48).
• Pick the Range box to toggle the setting to Enabled. This enables the
Range/Outputs box.
• Pick Range/Outputs to display the range/output setup table.
• Set the range limits and assign outputs as necessary (for more
information, refer to Chapter 13 in the Color CVIM User’s Manual).
Clearing of Range Limits and Output Assignments for Tools: If you
define range limits and assign outputs for a tool, and you then enable a
formula corresponding to that tool (as listed in Table 4.A, page 4–3), the
range limits and output assignments for the tool are reset to default values
(no output assignments, and range limits set to 0).
