Chapter 2
Introduction to the MATH-PAK Option
2–4
Depending on your requirements, you can configure the Color CVIM module
so that it range-checks formula results instead of, or in addition to, the initial
tool results.
Data communication: The formula results information is, as with
inspection tool results, also accessible to devices connected to the Color
CVIM module through the backplane, 1771 Remote I/O port, or RS-232 port.
Depending on your requirements, you can configure the Color CVIM module
so that formula results are accessible instead of, or in addition to, the initial
tool results.
Accessing the MATH-PAK Features
With the MATH-PAK option installed, the MATH-PAK features are accessed
through the added Config. Results box on the Archival menu. To access
the Config. Results (MATH-PAK) menu, you would:
• Pick Misc → Archival to access the Archival menu (see Figure 2.3).
• Pick Config. Results on the Archival menu.
To define a formula, you would pick Set Formula on the Archival menu.
When you do, the formula entry keyboard appears (see Figure 2.3). You then
enter a formula by picking the appropriate boxes on the formula keyboard.

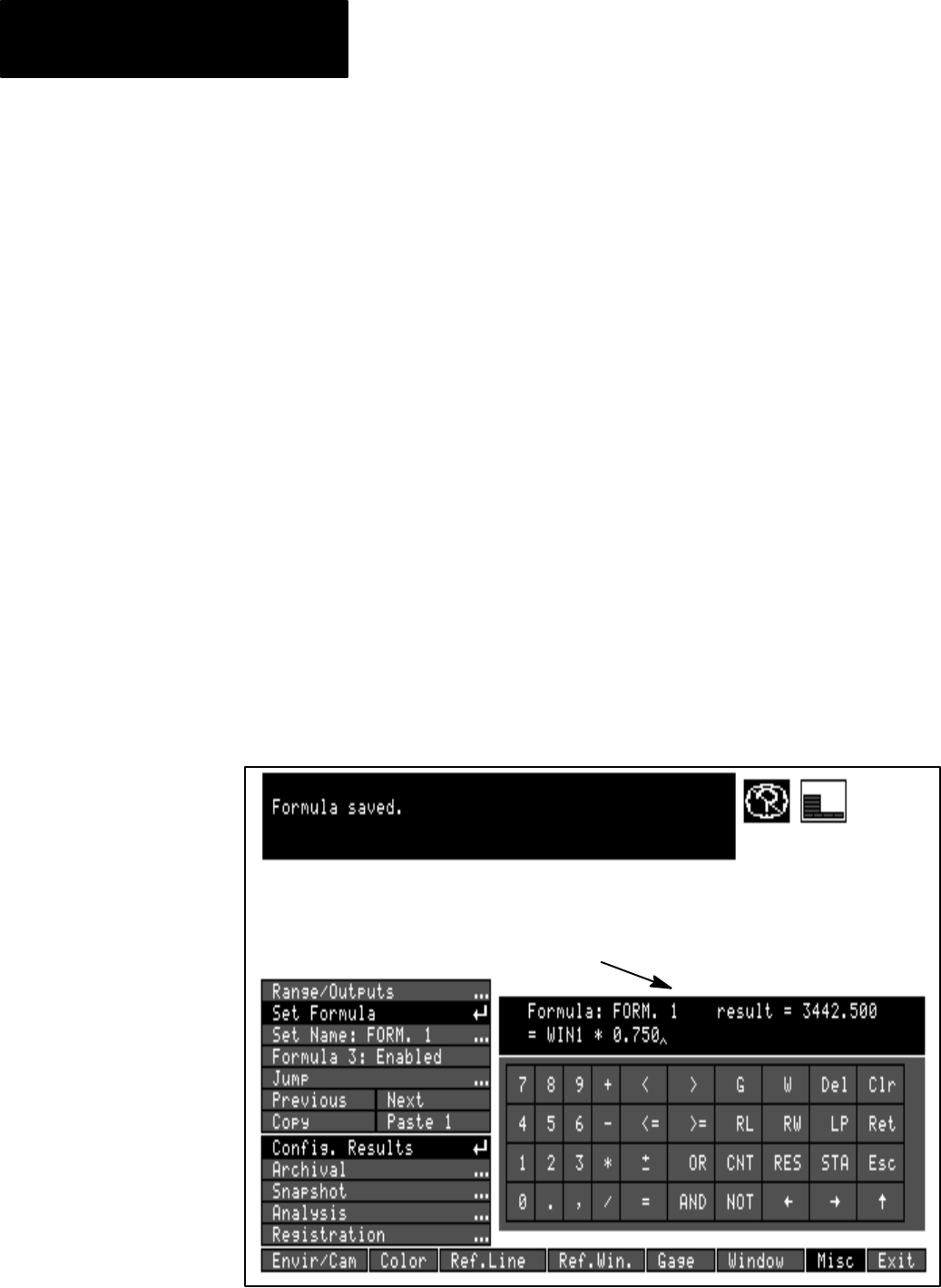

Figure 2.3 Accessing the MATH-PAK features
Formula
entry
keyboard
