MSR45E Safety Relay Expansion Module User Manual
Original instructions
Arc-limiting graph
Characteristic curves for DC and AC applications (2C relay expansion module):

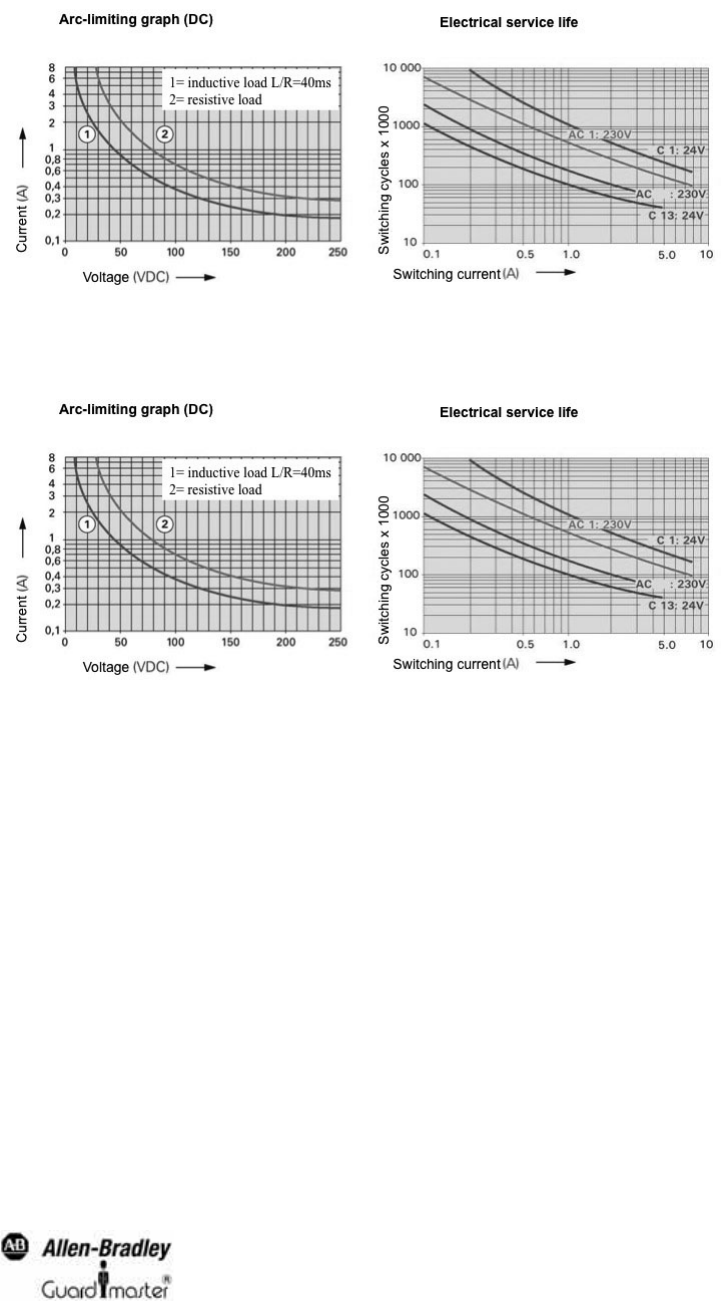

Figure 6: Arc-limiting graph and lifespan curve for MSR45E expansion modules (secure off switching, no standing arc, max. 1 operating cycle / s)
Characteristic curves for DC and AC applications (3C relay expansion module):
Figure 7: Arc-limiting graph and lifespan curve for MSR45E expansion modules (secure off switching, no standing arc, max. 1 operating cycle / s)
