Rockwell Automation Publication 440R-UM009B-EN-P - February 2014 43
Interface Web Dialogs Appendix B

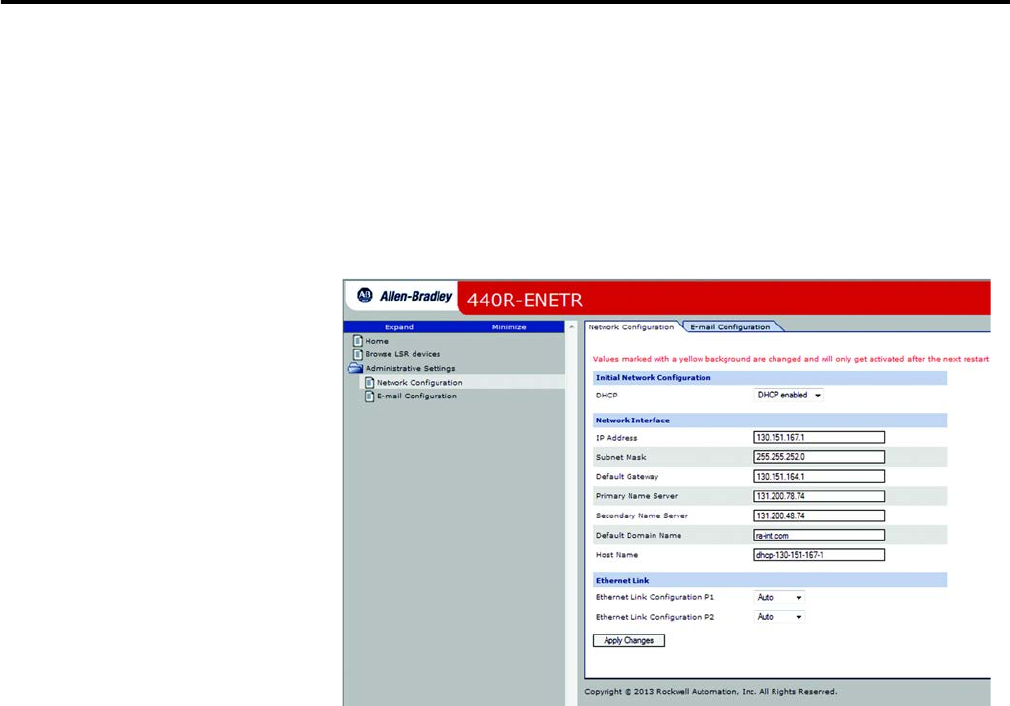

Use the Network Configuration Page
To use the Network Configuration page to make entries for enabling or disabling
DHCP and setting TCP/IP parameters and Ethernet link operation, follow this
procedure:
1. From the Web page, click the Network Configuration tab at the top of the
page or panel on the left. You see the Network Configuration page.
2. From the Network Configuration tab, complete these entries.
• For Initial Network Configuration DHCP
– Static
– DHCP enabled
• For Network Interface, select form these choices.
– IP Address
– Subnet Mask
– Default Gateway
– Primary Name Server
– Secondary Name Server
– Default Domain Name
– Host Name
• For Ethernet Link, select from these choices
– Ethernet Link Configuration P1
□ Auto
□ 10 HDX
□ 10 FDX
□ 100 HDX
□ 100 FDX
