40 Rockwell Automation Publication 440R-UM009B-EN-P - February 2014
Appendix B Interface Web Dialogs
To display and work with the interface diagnostics home page, follow these
procedures.
1. From your web browser, enter the interface IP address to see the Home
page.
2. From the Home page, complete one of these, as desired.
• Click one of the following to access www.ab.com
.
– Allen-Bradley logo at the top of the page
– Visit
ab.com for additional information statement under Resources
• Click Rockwell Automation at the top right to go to
www.rockwellautomation.com
.
• Click the following to see additional diagnostics web pages.
– Browse LSR devices
– Administrative Settings: Network and Email Configuration
IMPORTANT
Make sure that your PC Internet LAN setting and your TCP/IP
settings are configured to access the subnet on which your
interface communicates.

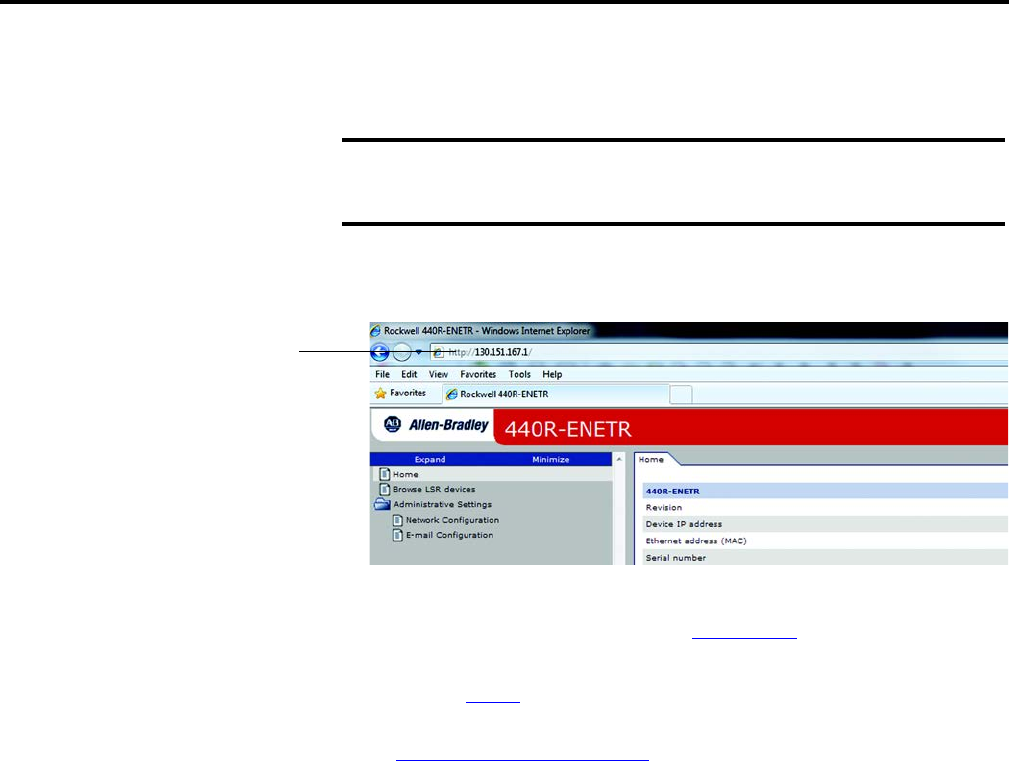

Enter the interface IP address
to see the home page.
