Chapter 4 Automation Controller Communications
An existing project can be used or a new project can be created to configure
EtherNet/IP I/O messaging. To create a new project, perform the following
steps.

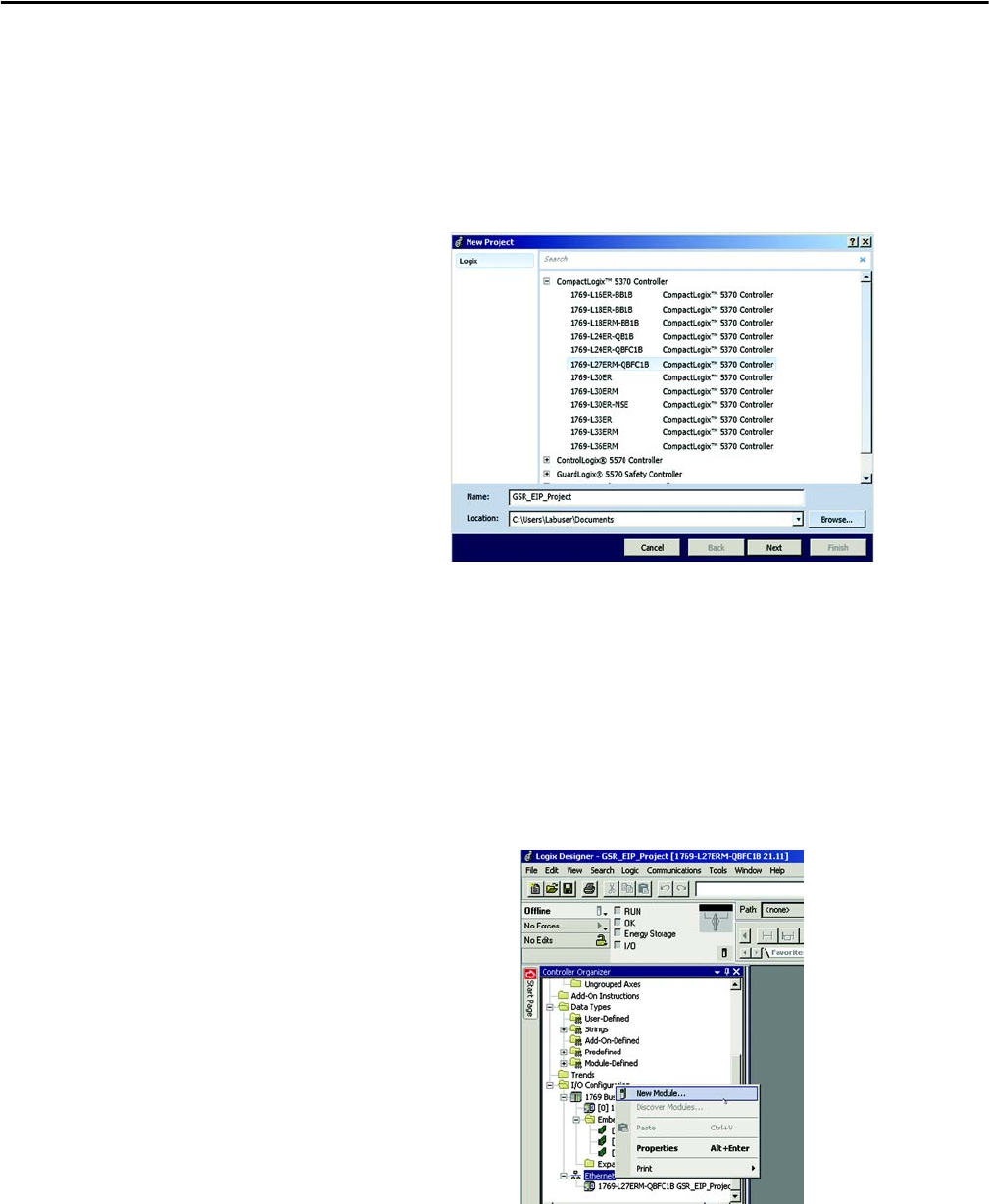

1. Select File > New from the RSLogix 5000 menu bar.
2. Select the controller type. Then, enter a name for the project and click
Next.
3. Select the Security Authority and enter a description. Then, click Finish.
EtherNet/IP Network Configuration with Add-on Profiles
After the controller configuration, the Guardmaster EtherNet/IP Network
Interface has to be added to the I/O Configuration.
1. Right-click on the EtherNet/IP bridge within the I/O Configuration
folder, then select New Module to open the Select Module Type window
