Publication IASIMP-QS015C-EN-P 99
Faceplate Logix Integration Chapter 5

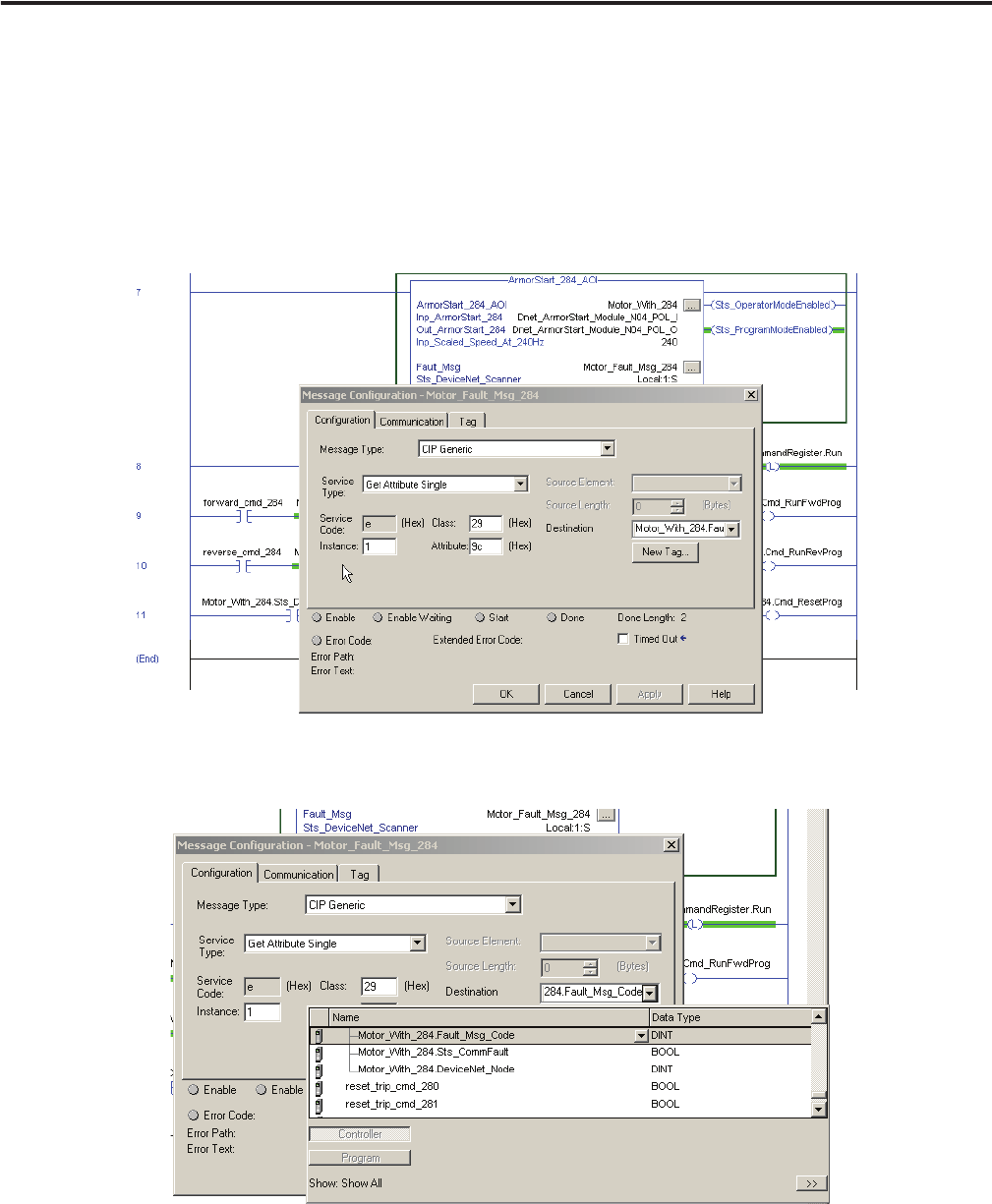

11. From the pull-down menus and fields, choose the appropriate settings as follows:
• Message Type = CIP Generic
• Service Type = Get Attribute Single
• Class = 29
• Attribute = 9c
• Instance = 1
12. From the Destination pull-down menu, choose Motor_With_284.Fault_Msg_code.
