98 Publication IASIMP-QS015C-EN-P
Chapter 5 Faceplate Logix Integration

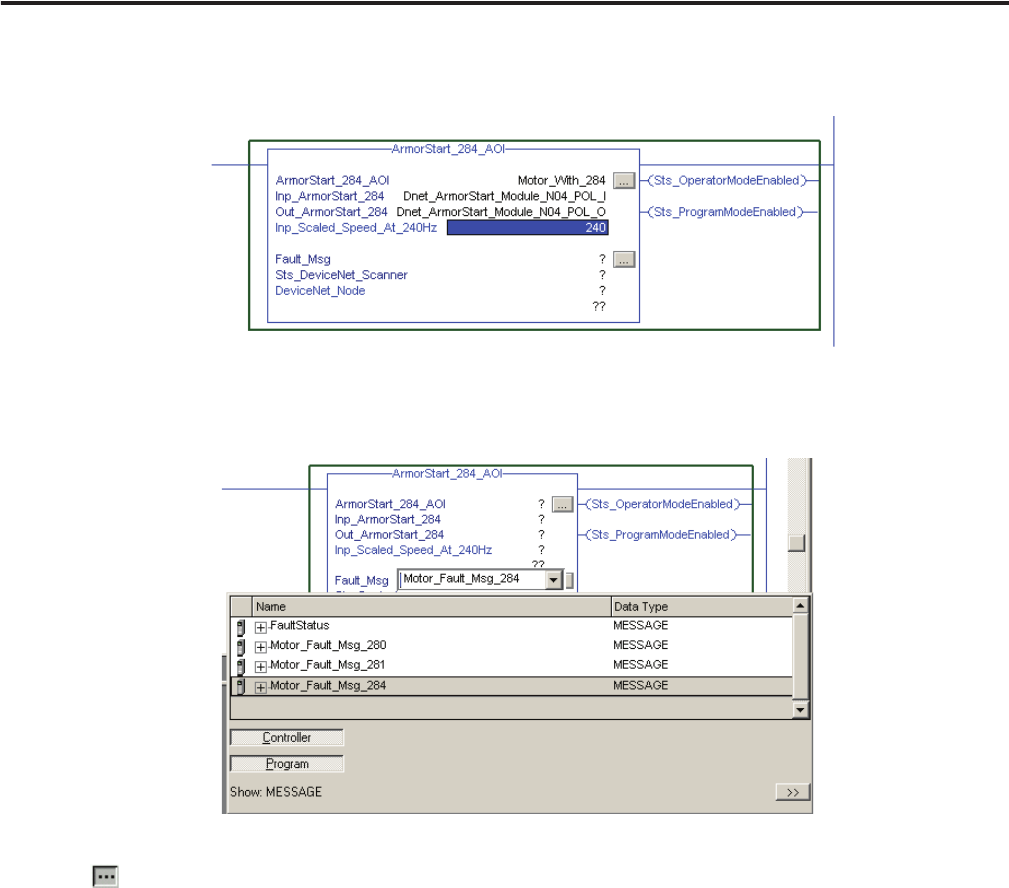

9. Enter the Inp_Scaled_Speed_At_xxxx value.
The Add-On Instruction scales the drive input and output speed values based on the value entered.
To access the fault codes for the ArmorStart device, you need to get an explicit message. Fault_Msg
parameter is of the data type message. It needs to be connected to the Explicit Message tag already in the
Add-On Instruction as shown in the example.
10. Click next to the Motor_Fault_Msg tag.
The Message Configuration -Motor_Fault_Msg_284 dialog box appears.
