Faceplate Logix Integration Chapter 5
Import the ArmorStart Add-On Instructions
The pre-configured ArmorStart Add-On Instructions
provide the logic for the pre-configured FactoryTalk
View Machine ArmorStart faceplates. These
pre-configured faceplates let you monitor, control, and
diagnose your ArmorStart device from a PanelView Plus
terminal or Industrial Computer.

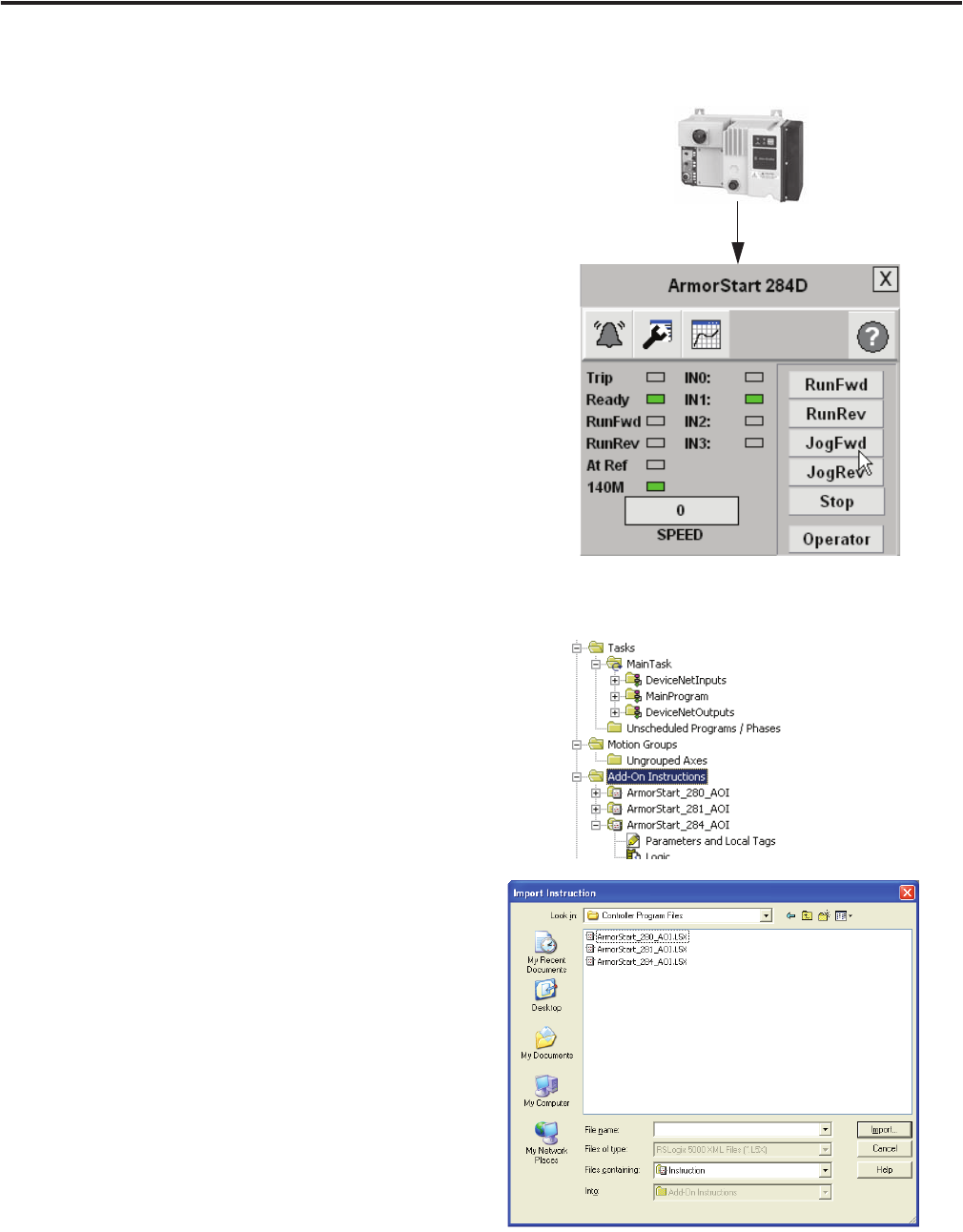

The ArmorStart 284 illustration to the right is a
pre-configured FactoryTalk View Machine Edition
Goto Display button that will launch the on-top display
just below it. This is the initial display that provides
operator monitoring and control. The toolbar buttons
on that display let you navigate through the additional
status, configuration, and diagnostic displays provided in
this faceplate.
Follow these steps to import the pre-configured
ArmorStart Add-On Instruction into your
RSLogix 5000 software application.
1. Open your RSLogix 5000 software application.
2. Right-click the Add-On Instructions folder and
select Import Add-On Instruction.
3. Browse to the ArmorStart Faceplate files on the
toolkit CD.
4. Open the Controller Program Files folder if you are
using FactoryTalk View Machine Edition software
for your HMI software.
