Publication IASIMP-QS015C-EN-P - August 2011 67
ArmorStart DeviceNet Configuration Chapter 3

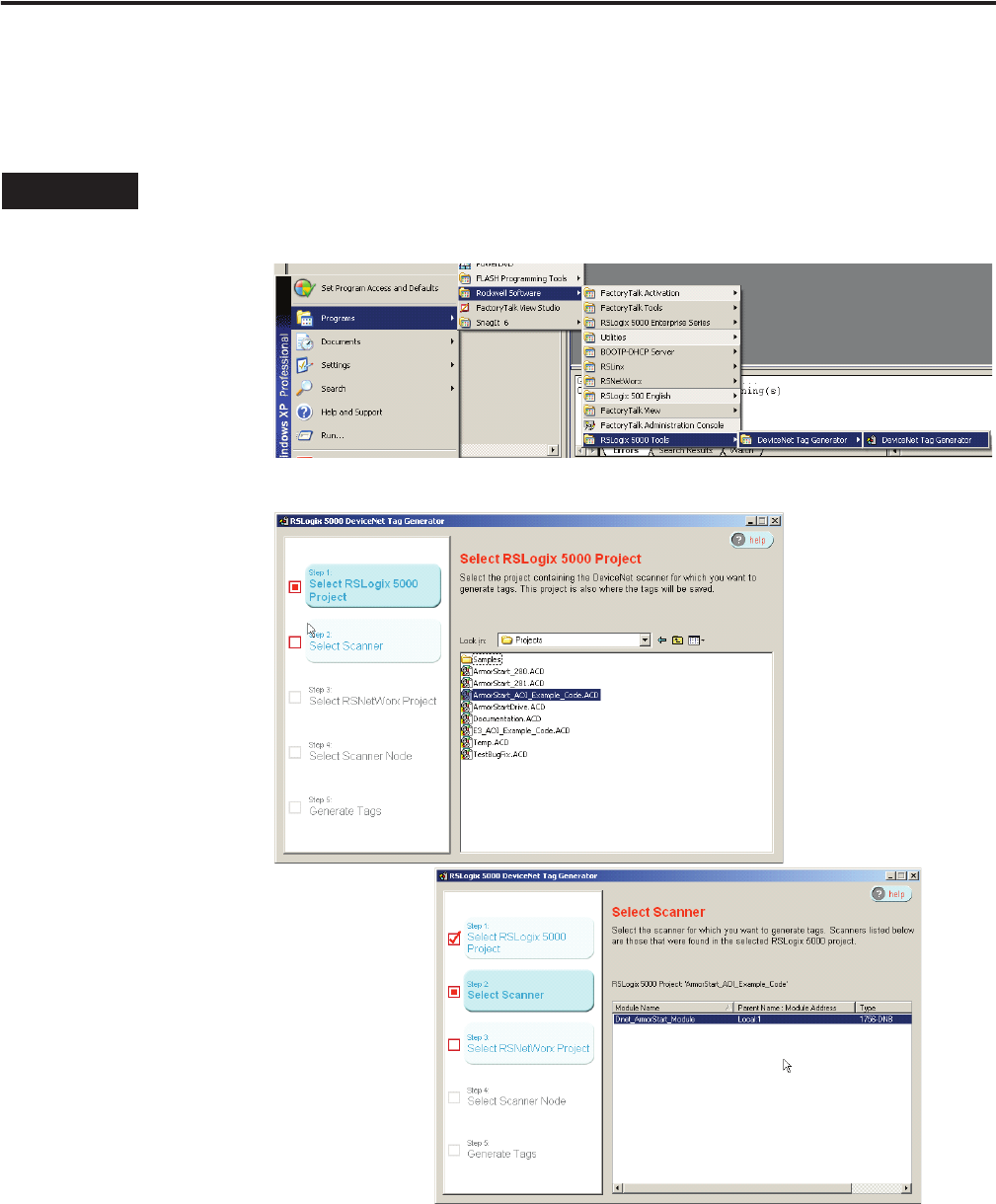

Generate ArmorStart Tags by Using the Tag Generator Tool
Follow these steps to generate ArmorStart device tags.
1. Launch the DeviceNet
Tag Generator tool.
2. Select the RSLogix 5000
Project where tags need
to be added.
3. Click Select Scanner and
select the DeviceNet scanner module that
was added in the previous section.
TIP
Make sure RSNetWorx software is closed before starting the DeviceNet Tag Generator Tool.
