Chapter 3 ArmorStart DeviceNet Configuration
Configure the DeviceNet Network by Using RSNetWorx Software
1. Refer to Chapter 2 for wiring the ArmorStart devices and the DeviceNet scanner module on the
DeviceNet network.
Make sure that the devices are powered.

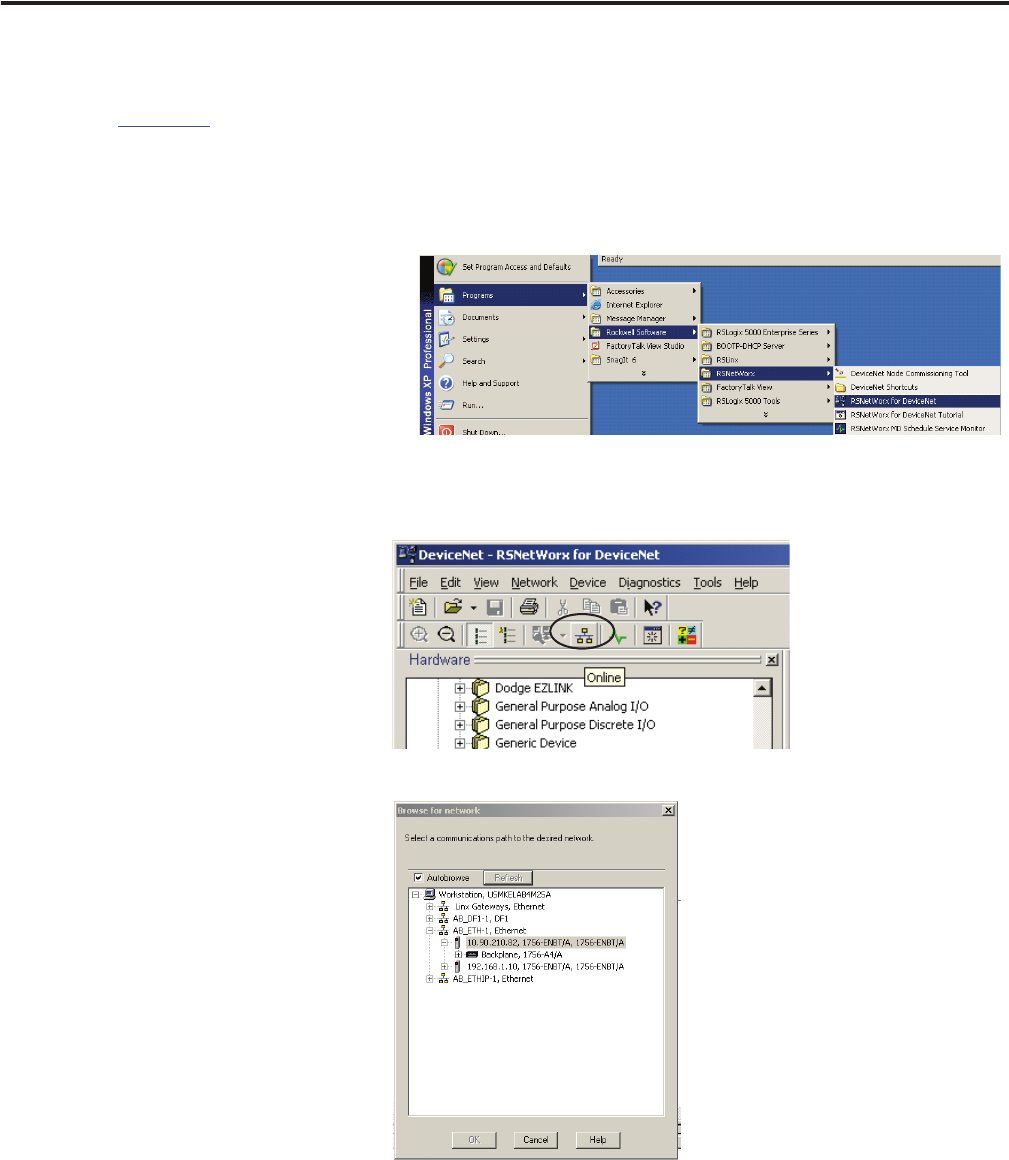

2. Launch RSNetWorx for DeviceNet
software.
3. From the File menu, choose New.
4. Click the Online icon.
The network browser dialog box
appears. This is where you select the
Ethernet driver where the controller
resides.
5. Select the appropriate controller,
then expand the list to select the
DeviceNet scanner in the controller.
