50 Publication IASIMP-QS015C-EN-P - August 2011
Chapter 2 System Layout and Wiring
Connecting the DeviceNet ArmorConnect to Your ArmorStart Device
The ArmorConnect power media offers both three-phase and control power cable system of cord sets, patch
cords, receptacles, tees, reducers, and accessories for use with the ArmorStart distributed motor controller.
These cable system components allow quick connection of ArmorStart distributed motor controllers,
reducing installation time. They provide for repeatable, reliable connection of the three-phase and control
power to the ArmorStart distributed motor controller and motor by providing a plug-and-play environment
that also avoids system miss wiring. When specifying power media for the ArmorStart distributed motor
controllers (Bulletin 280/281, 283, and 284), use only the Bulletin 280 ArmorConnect power media.

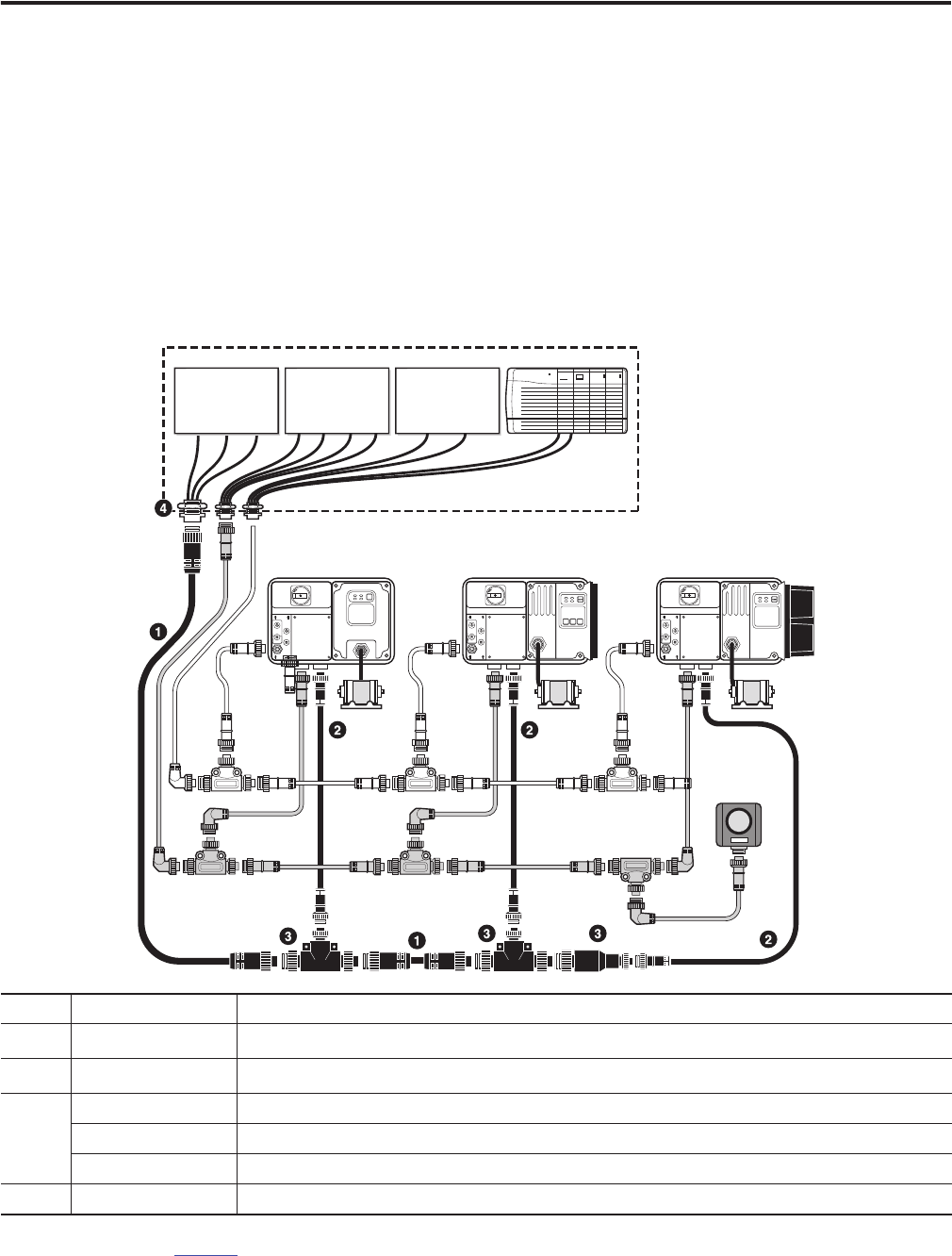

Three-phase Power System Overview
ID Cat. No. Description
1
280-PWR35A-Mx
1
1
“x” represents number needed for cable length. See the three-phase power media section of the ArmorStart Distributed MotorController and ArmorConnect Power Media
Selection Guide, publication 280-SG001,
for available lengths.
Three-phase power trunk–Patchcord cable with integral female or male connector on each end.
2
280-PWR22A-Mx
1
Three-phase drop cable–Patchcord cable with integral female or male connector on each end.
3
280-T35 Three-Phase power tees and reducer–Tee connects to a single drop line to trunk with quick change connectors.
280-RT35 Reducing tee connects to a single drop line (mini) to trunk (quick change) connector.
280-RA35 Reducer connects from quick change male connector to mini female connector.
4 280-M35F-M1 Three-phase power receptacles–Female receptacles are a panel mount connector with flying leads
RESET
OFF
Bulletin 280/281 ArmorStart
Bulletin 283 ArmorStart
Bulletin 284 ArmorStart
PLC
Bulletin 1492FB
Branch Circuit
Protective Device
Bulletin 1606
Power Supply
Enclosure
Bulletin 800F
Emergency Stop
Pushbutton
1606-XLSDNET4
DeviceNet
Power Supply
