30 Publication IASIMP-QS015C-EN-P - August 2011
Chapter 1 Hardware Selection

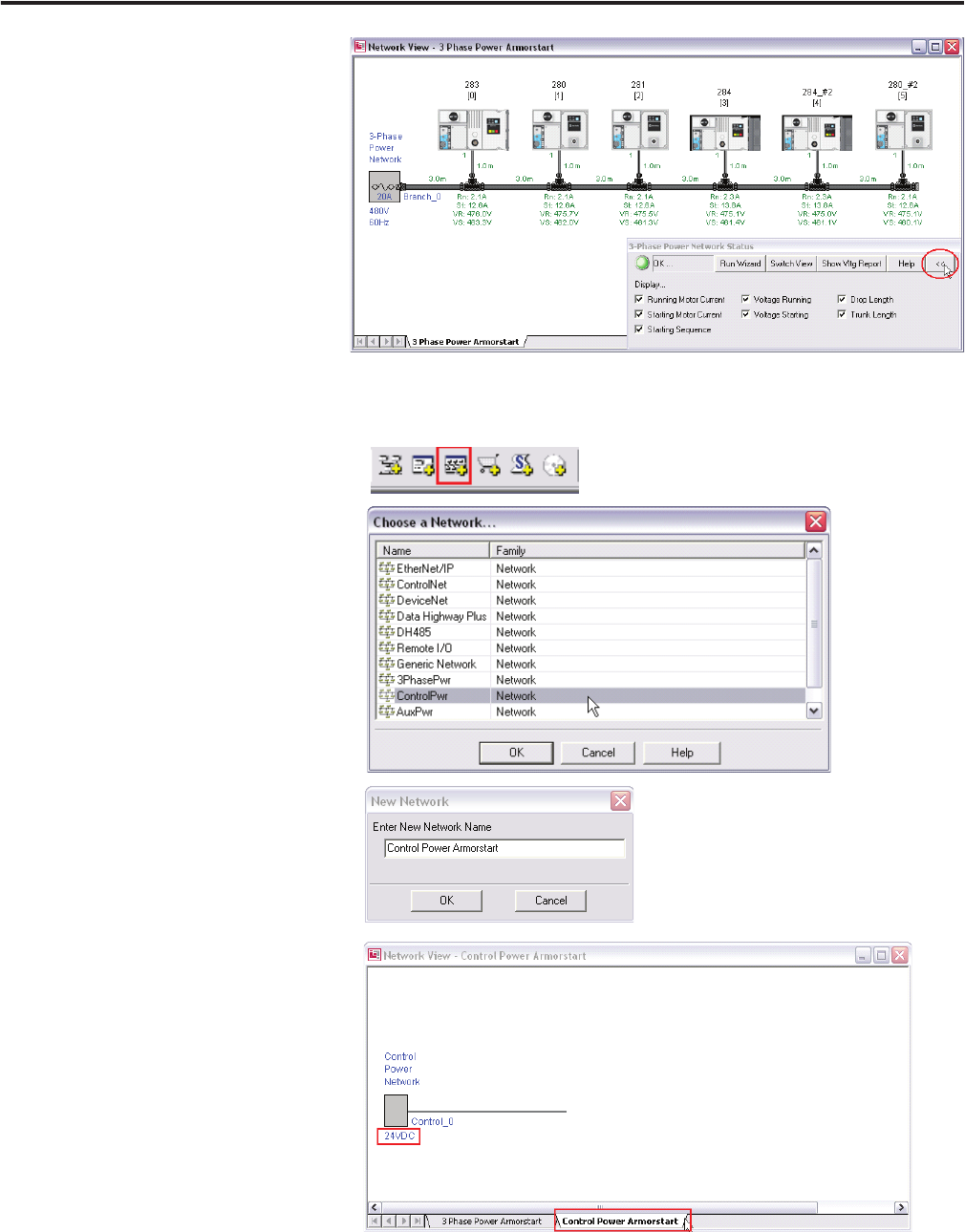

4. Click the arrow.
5. Check the appropriate
parameters for your application.
Add a Control Power Network
1. Click the New Network icon.
2. Select the ControlPwr network.
3. Click OK.
.
4. Enter your network name then
click OK.
The IAB creates a new control
power network and displays the
network voltage under the power
distribution panel at the left end of
the network. Notice the tab added
to the network view for the Lab
control Power network.
