174
Appendix B FactoryTalk View Application Configuration
Create Design (local) and Runtime (target) Shortcuts
FactoryTalk View Studio software lets you configure independent communication methods for application
Design (local) and for Runtime (target) deployment. This functionality lets you test applications on the
development machine before it is deployed on a terminal. This saves a significant amount of time testing and
developing the application.
In this example, we use RSLinx Enterprise software with an L63 CompactLogix controller.

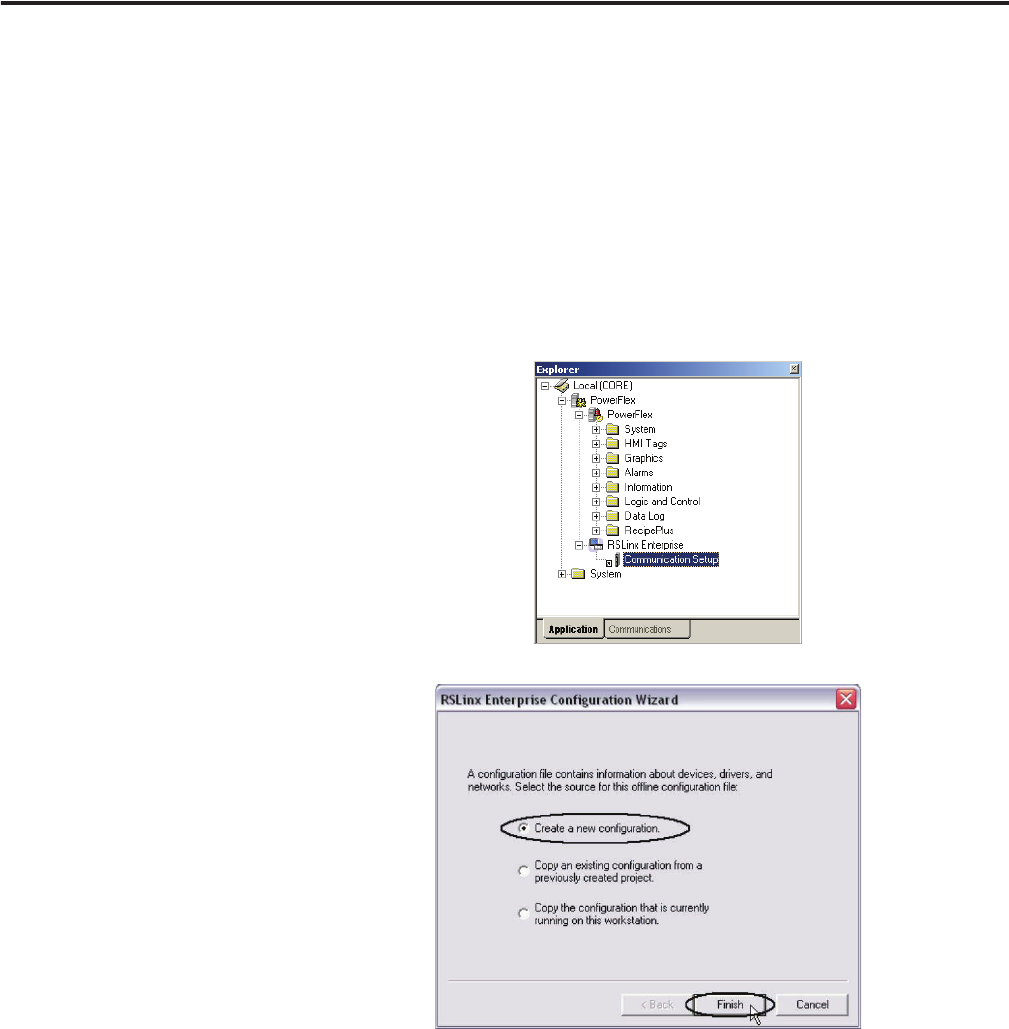

Follow these steps to create a New RSLinx Enterprise Configuration.
1. Expand RSLinx Enterprise and double-click
Communication Setup.
2. Click Create a new configuration.
3. Click Finish.
