168 Publication IASIMP-QS015C-EN-P - August 2011
Appendix A Logix Communication and Controller Configuration
Browse the EtherNet/IP Network Devices

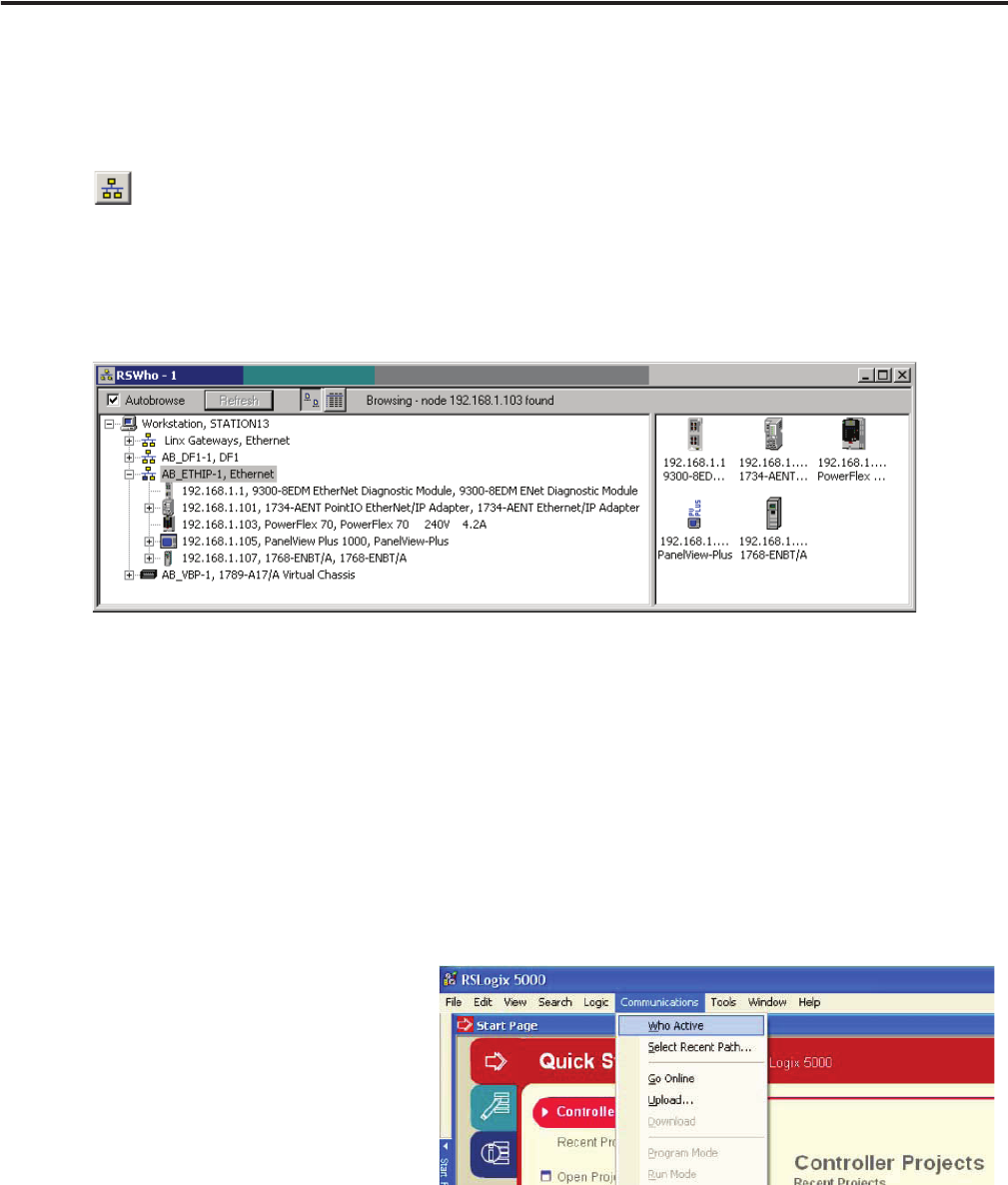

Follow these steps to verify that all of your network devices are present in RSLinx Classic software.
1. Click to view the EtherNet/IP driver and devices on the network.
2. Verify that all of your network devices are detected.
In this example, there are five network devices. The network configuration for your specific application
will be different.
Load the Controller Firmware
This procedure describes how to load firmware in the controller from RSLogix 5000 software by using an
Ethernet connection.
1. Apply input power to the ControlLogix controller and have the Ethernet cable connected to the Ethernet
card.
2. From the Communications menu,
choose Who Active.
