Publication IASIMP-QS015C-EN-P - August 2011 155
Appendix
A
Logix Communication and Controller Configuration
In this appendix you configure your personal computer and controller communication, configure your
controller, and create a new project by using RSLogix 5000 software.
Configuring PC Communication
This section provides information on how to set and verify your IP address.

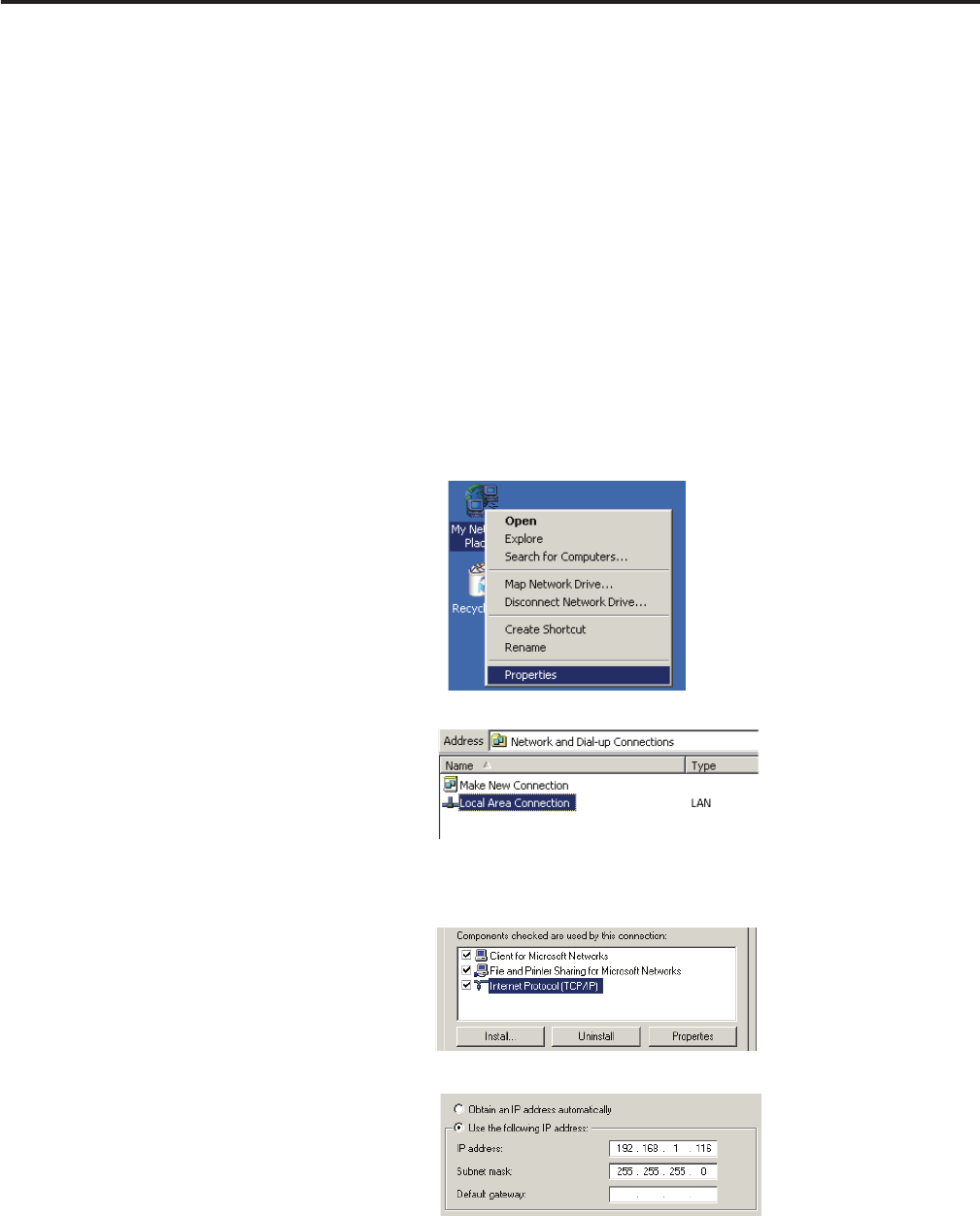

Set the IP Address
1. On your desktop, right-click My Network
Places and choose Properties.
2. Double-click Local Area Connection.
3. From the General tab, Choose Properties.
Verify Internet Protocol (TCP/IP) is
checked and selected.
4. Click Properties.
5. Click Use the following IP address.
6. Enter the IP address and Subnet mask as
shown or enter your address.
7. Click OK.
8. Close all network windows.
