Chapter 7 ArmorStart System Application Guide
ArmorStart Device Faceplate - Online Help Options
Press Help on any view to access the online help information.
Equipment Status Display Overview
The ME Equipment Status Faceplate files let you quickly load and configure a summary display of
preconfigured status and diagnostic displays or faceplates for FactoryTalk View Machine Edition software.
The Equipment Status Faceplate works in conjunction with individual device faceplates and provides a single
summary display of all the faceplates that may be configured for an application. You can configure up to nine
device faceplates to run with the Equipment Status faceplate and you can launch each Device faceplate
directly from it.

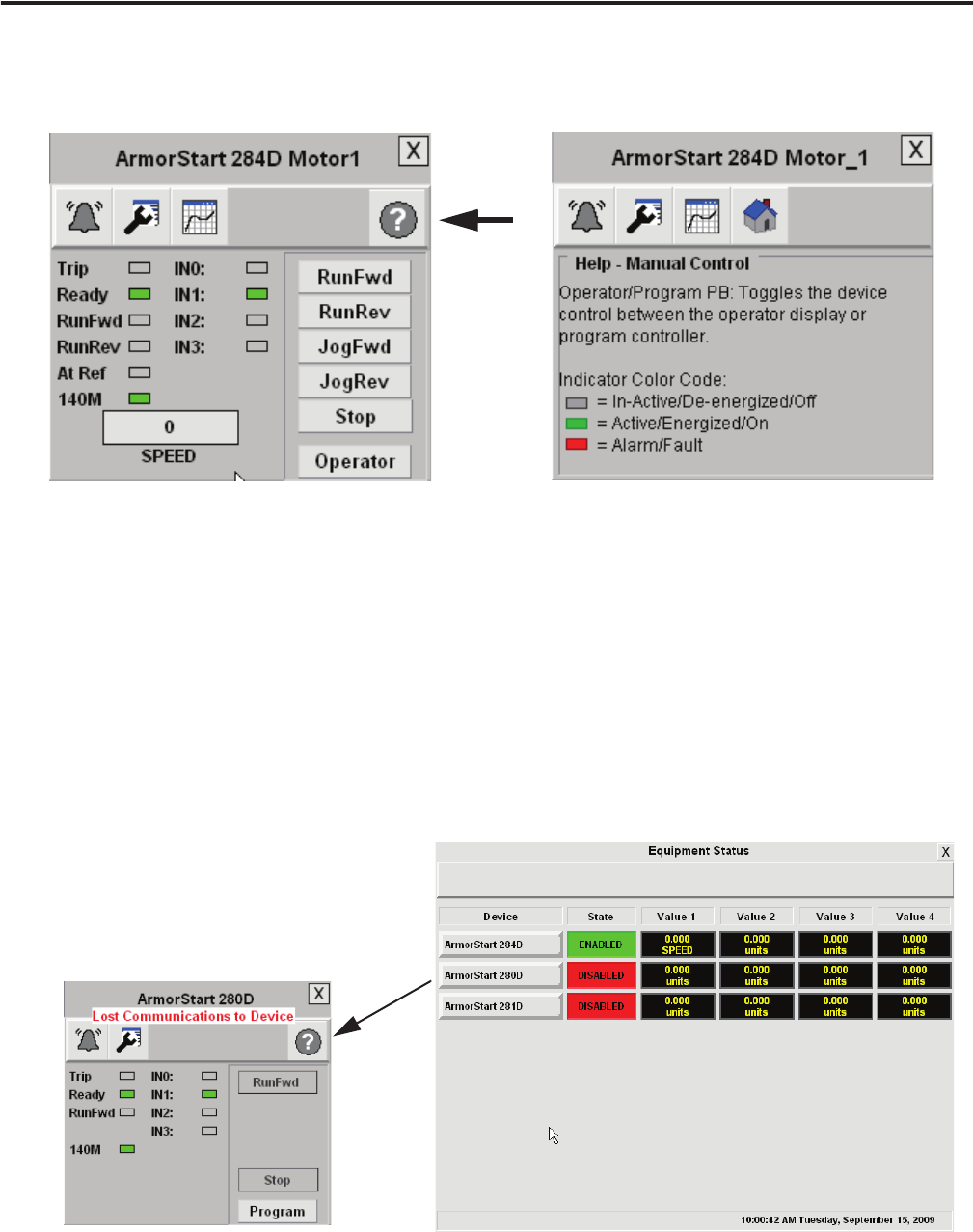

This example shows the ArmorStart devices
added to the Equipment Status display. You
can click the device button to open the
associated device faceplate.
