Publication IASIMP-QS015C-EN-P - August 2011 151
ArmorStart System Application Guide Chapter 7

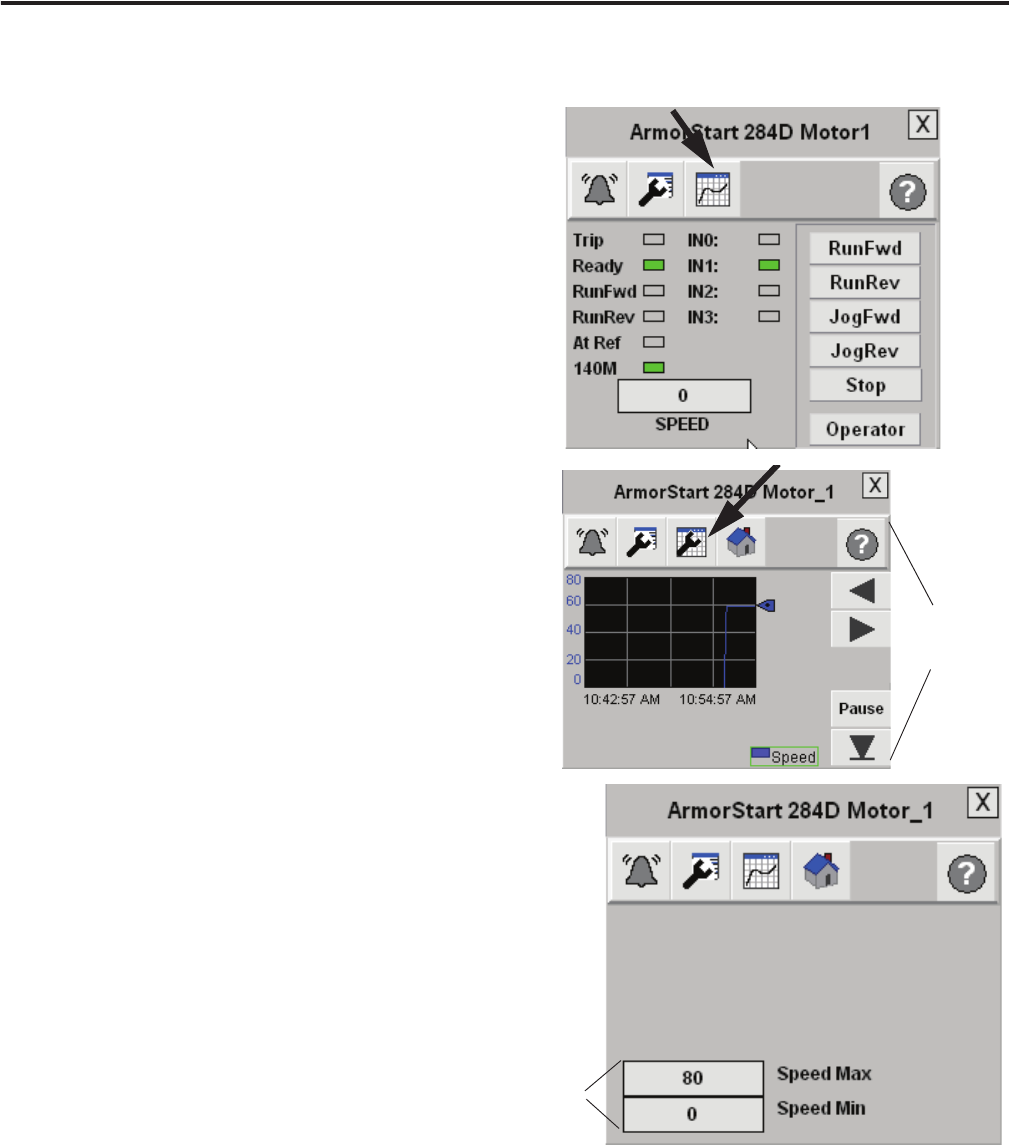

ArmorStart Device Faceplate - Trending View
1. Click the Trending toolbar button to access the
trending faceplate view.
The trending views let you monitor the speed value
over time.
2. Press the speed trend navigation buttons to scroll
through the saved value over a selected period of
time.
3. Click the trend configuration toolbar button to access
the minimum and maximum speed trend settings.
The trend scale configuration screen opens.
4. Press the value fields to modify.
A popup keyboard opens for value entry.
5. Press Enter when the entry is complete.
Trend
Navigation
Buttons
Value
Fields
