148 Publication IASIMP-QS015C-EN-P - August 2011
Chapter 7 ArmorStart System Application Guide
ArmorStart Device Faceplate - Fault Indication View
The Alarm button indicates a ArmorStart device fault condition and activates the fault diagnostic views.

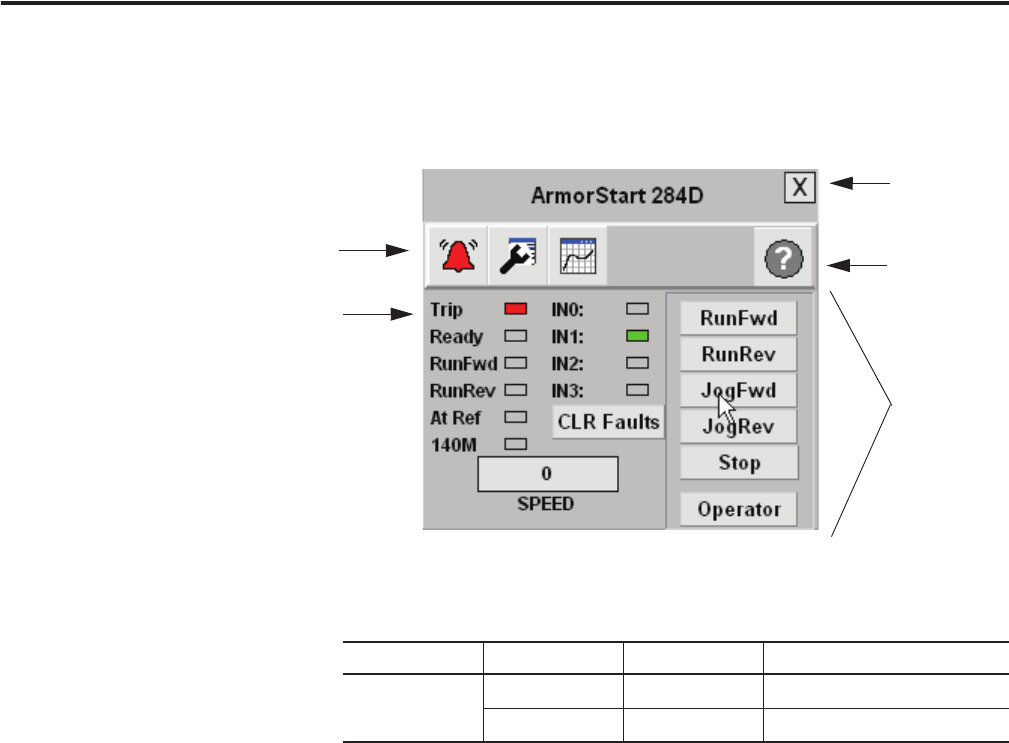

Fault Indication View
To access the detailed fault information and action displays, press the alarm button on the toolbar.
Flashing Fault
Indicator
Command
Buttons
Current Fault
Indicator (red)
Close
Button
Help
Button
Toolbar Button Color Indicator Description Action
Alarm
Grey Normal state None
Flashing red Fault Follow fault action screen
