Publication IASIMP-QS015C-EN-P - August 2011 129
FactoryTalk View Integration Chapter 6

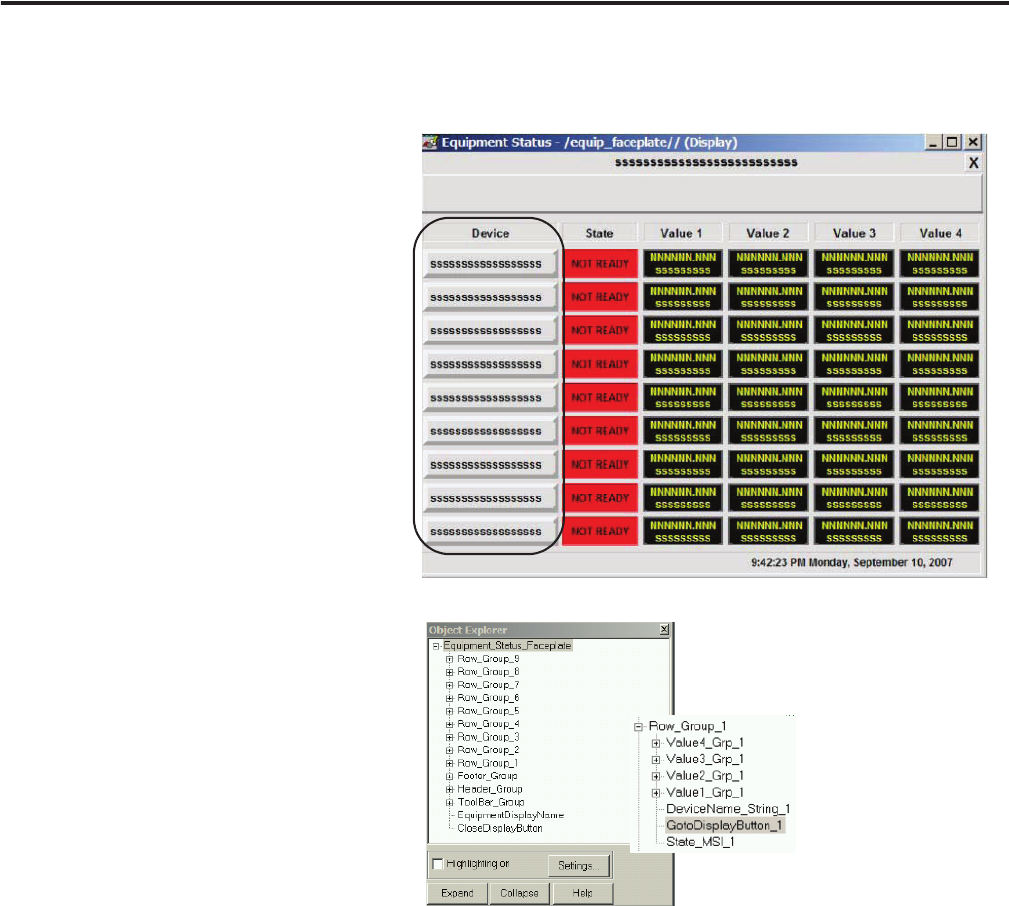

Configure the Goto buttons on the Equipment Status Faceplate
1. Open the Equipment Faceplate
display.
2. Right-click the display and choose
Object Explorer.
The Object Explorer dialog box
opens.
3. For each row to be displayed on the
Equipment Faceplate, find the
GotoDisplayButton object for that
row and double-click to open its
properties.
