Publication IASIMP-QS015C-EN-P - August 2011 117
FactoryTalk View Integration Chapter 6

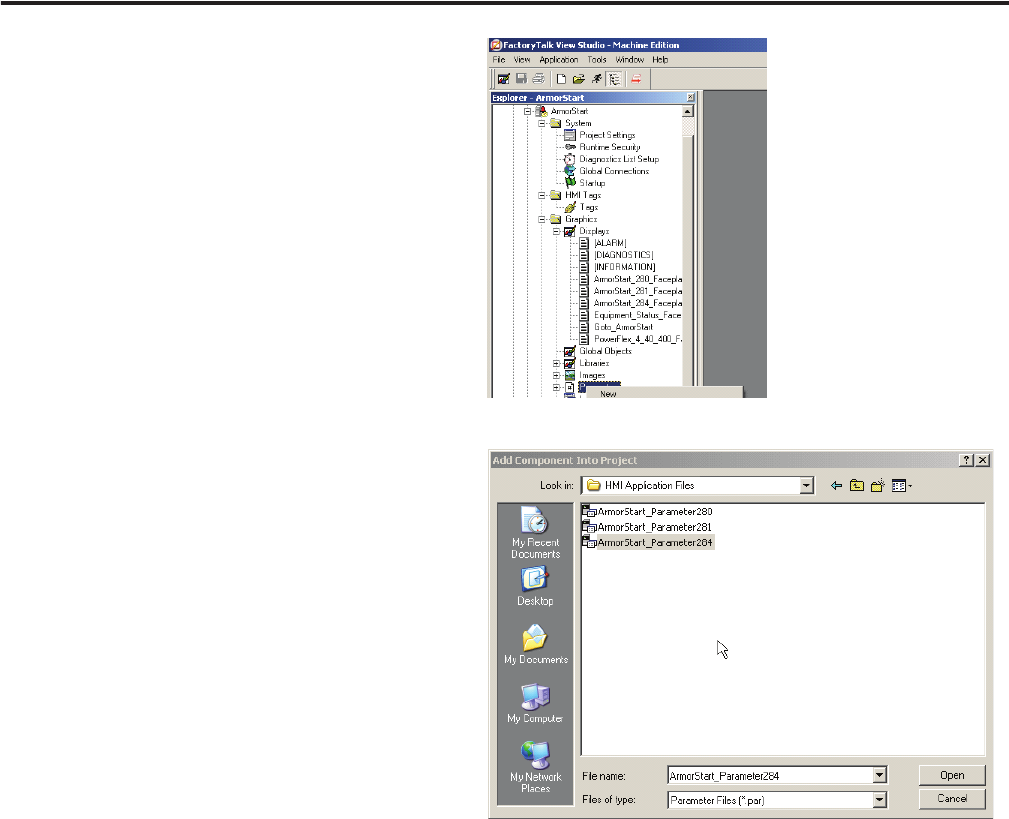

3. Add the faceplate parameter file for
ME_ArmorStart_Parameter.par to your
FactoryTalk ViewME application.
a. Right-click Parameters, and choose Add
Component Into Application.
b. Browse to the HMI Application Files
folder on the toolkit CD and select the
ArmorStart_Parameterxxx.par file.
c. Click Open.
Typically you rename the parameter with a
name that associates it with the intended
ArmorStart device you wish to monitor and
control.
4. Open the parameter that you just added and edit the parameter tagname to match your application.
The parameter tag name needs to include the RSLinx Enterprise device shortcut name of your systems
controller and the module name of the intended ArmorStart device you wish to monitor and control.
a. Double-click the faceplate parameter file and edit the Device Shortcut name to match the Logix
controller that was previously configured in your RSLinx Enterprise Communication Setup.
