Publication IASIMP-QS015C-EN-P 109
Faceplate Logix Integration Chapter 5
Add Alarm Logic for Alarm History Faceplate
The ME Alarm History Faceplate files let you quickly load and configure a pre-configured Alarm History
display or faceplate for FactoryTalk View Machine Edition software. The Alarm History Faceplate works in
conjunction with the individual ME_ArmorStart_Faceplates/AOIs, and provides an Alarm History of all of
the device alarms and warnings that are configured to its alarm triggers. The Alarm History Faceplate files
include pre-configured alarm triggers and messages for the ArmorStart devices.

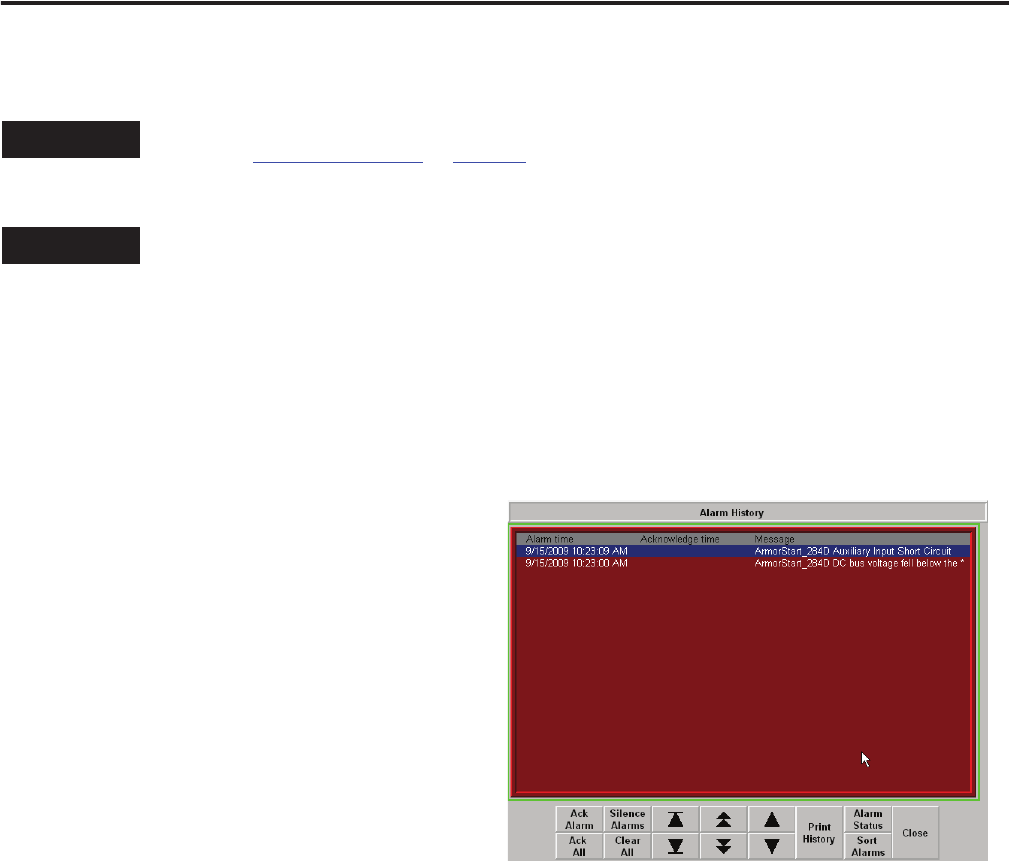

In this example, an Alarm History Faceplate is
displaying alarms and faults from ArmorStart
devices (Motor 1 and Motor 2). The pre-configured
alarm messages include an embedded string tag that
is updated by the individual ArmorStart faceplate
Add-On Instruction files when their specific alarms
are triggered.
TIP
This is an optional step and necessary only if you intend to use the Alarm History Faceplate. To skip this
step, go to Download the Project
on page 111.
TIP
To incorporate Alarm History Faceplate into your application, the PanelView Plus terminal must support
800x600 window size.
