Publication IASIMP-QS015C-EN-P 101
Faceplate Logix Integration Chapter 5

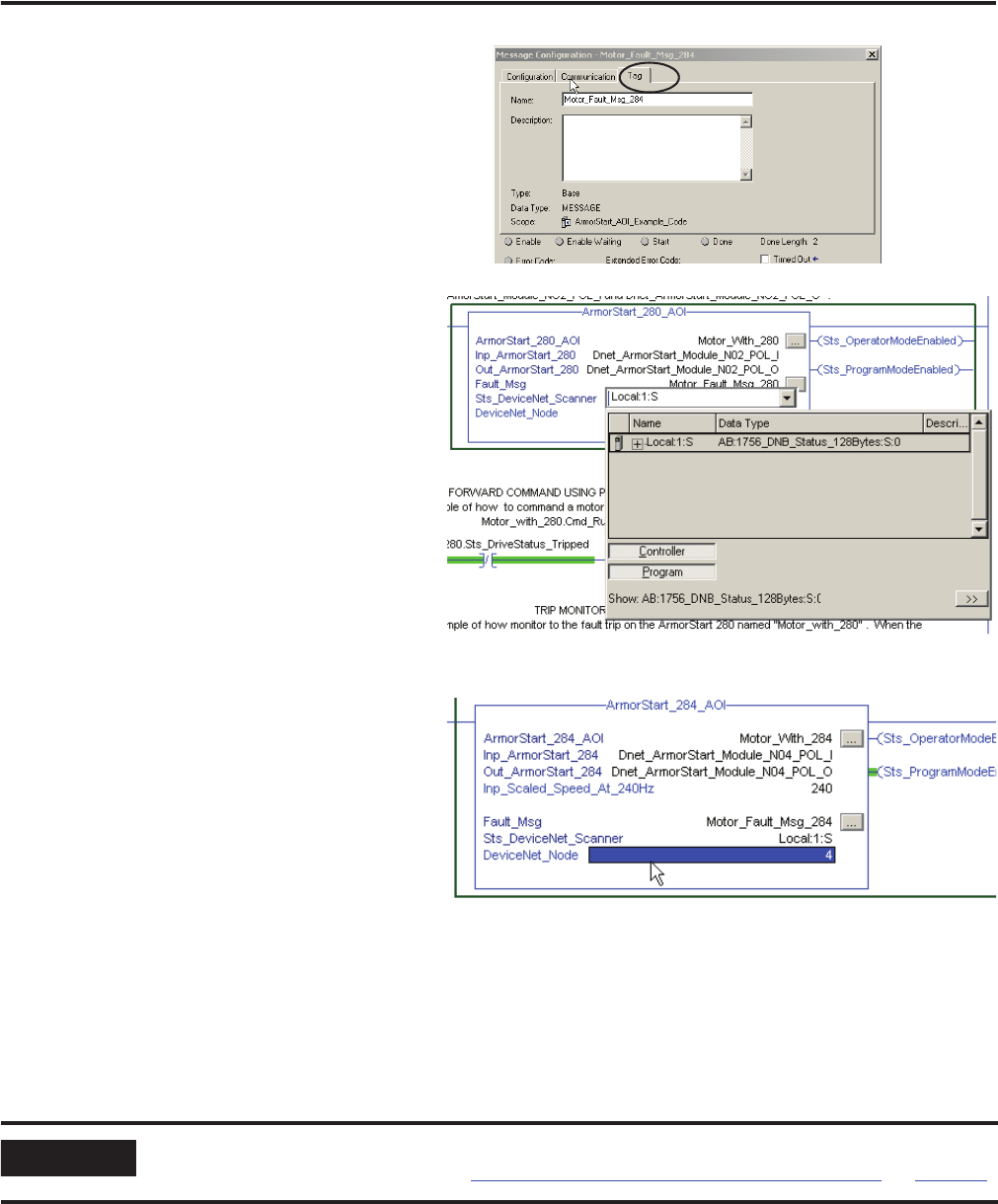

16. Click the Tag tab.
17. Verify that the name in the name field is
Motor_Fault_Msg_xxx which is the tag in AOI.
18. Right click on Sts_DeviceNet_Scanner tag
and select the Local:1:S tag from the list.
It is the module defined tag and displays
the status of the DNBT scanner.
19. Click OK.
20. Enter the DeviceNet_Node value that
corresponds to the node address of the
device that it is connected to.
For this example, the node of the
ArmorStart 284 device is 4.
Integrate Your ArmorStart Device Application
The individual Add-On Instructions include the interface logic and tags from both the faceplate (operator
control) and application program (program control) to monitor and control the ArmorStart device.
IMPORTANT
Do not write directly to the Corresponding ArmorStart Device Tags that are listed in the ArmorStart
Command and Set Value Tags tables in Add-On Instruction
Program Tag Listing and Function, on page 104.
