5–2 Maintenance and Troubleshooting
Publication 2755-6.3
Charging the Battery
You can charge the battery (Catalog No. 2755-HCP-B1) while the
battery is in the gun or in the 4-slot battery charger.
!
ATTENTION: Charge a battery at room temperature
of 65_ F (18.3_ C) to 70_ F (21.1_ C) for optimum
performance. Allow the battery to adjust to room
temperature before charging.
In the Gun

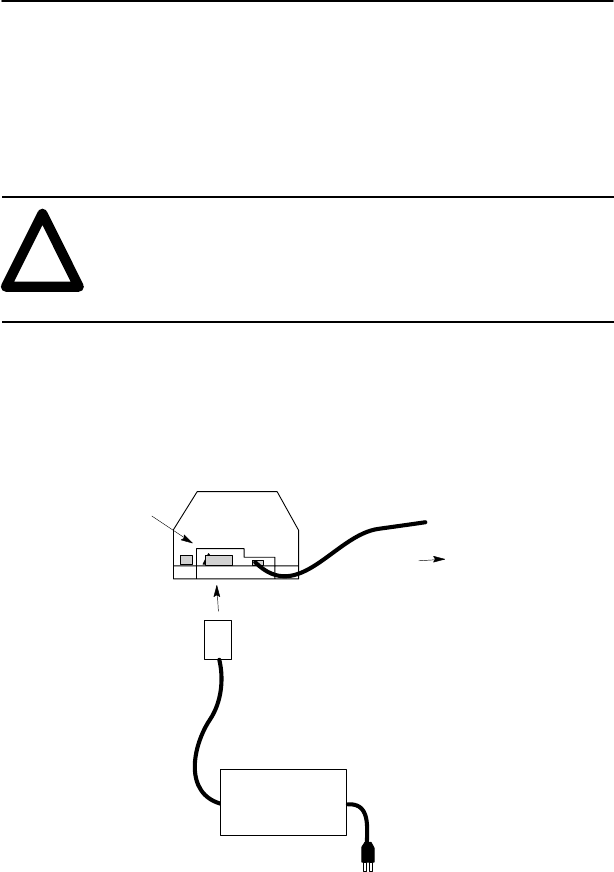

1. Connect the power supply to the power input port on the
base/charger unit.
Base/charger
Host
Power Supply
Power Input Port
