2–14 Installing Your Hardware
Publication 2755-6.3

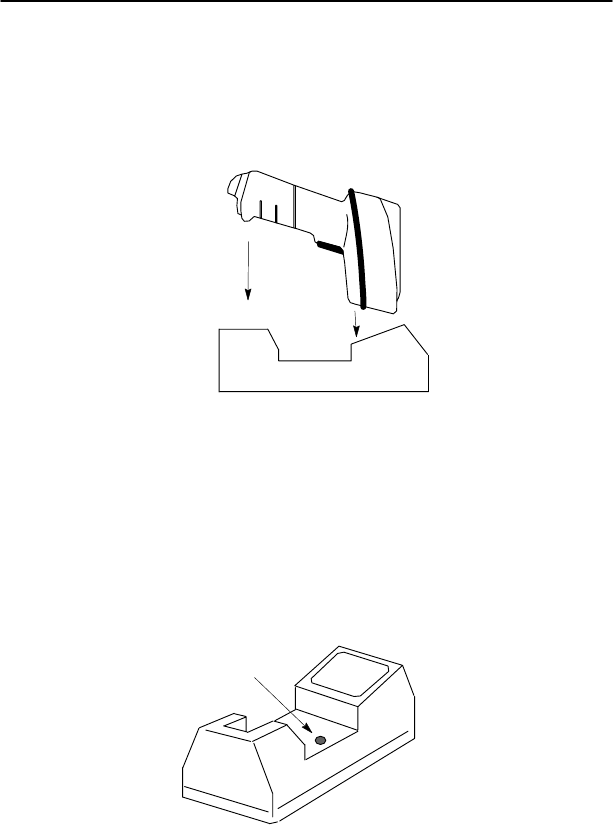

2. Place the scanner into the base/charger unit as shown below.
Make sure that the unit fits snugly into the base/charger.
3. Check the charge status indicator for a full charge (blinking
rapidly = full charge), which occurs within two hours. However,
you can use the scanner with less than a full charge.
Charge Status LED
