2–12 Installing Your Hardware
Publication 2755-6.3
Connecting a Wedge Cable to a Host Device
!
ATTENTION: Do not install the wedge cable
(Catalog No. 2755-HCC-BP1-06, -BP2-06, or
-BV1-06) or disconnect/connect the host device with
power applied to either the wedge cable or host device.
Failure to follow this caution may result in damage to
the base/charger unit, wedge interface cable, or host
device.
To connect the wedge cable to the host device:
1. Disconnect power from your host device.
2. Disconnect the keyboard from the host device.
3. Plug the wedge cable into the host device (i.e., one end into the
terminal and the other end into the keyboard).

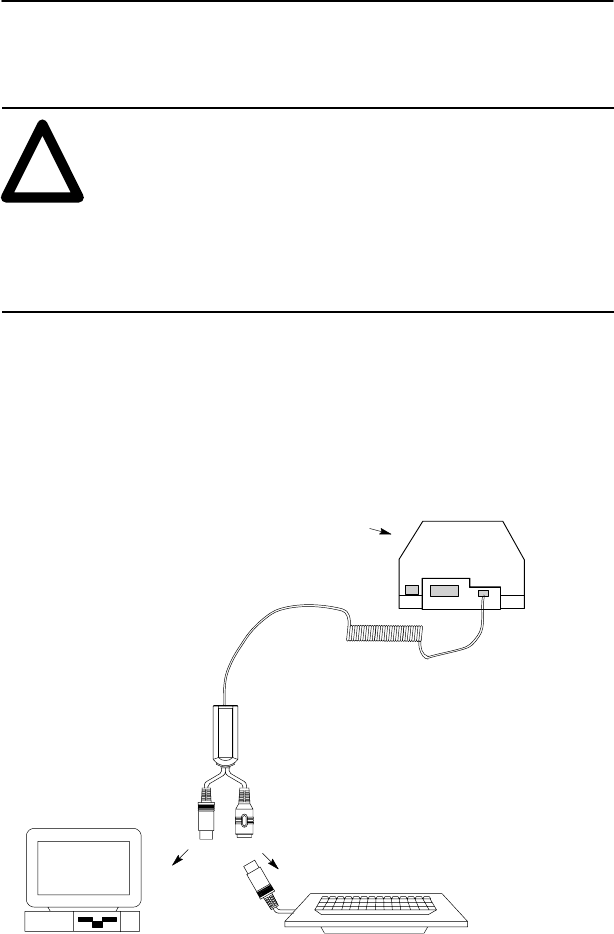

To Terminal
Wedge Cable
To Keyboard
Base/Charger Unit
4. Reconnect power to your host device.
